Kubota GL300
The Kubota GL300 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (listed): 29.6 hp / 22.1 kW. Transmission: 16 forward and reverse. Operating weight: 2800 to 3086 pounds.
Engine Power
Diesel (listed): 29.6 hp / 22.1 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
16 forward and reverse
Operating Weight
2800 to 3086 pounds
Overview
 | 1993 - 1995
GL SeriesCompact Utility tractor
GL Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
GL300 | ROPS |
GL300Q | cab |
GL300E | narrow |
Kubota GL300 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 9.25 gal
35.0 L |
Engine details ...  | |
Kubota GL300 Power | |
|---|---|
Engine | 29.6 hp
22.1 kW |
PTO (claimed) | 27.6 hp
20.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 5.9 gpm
22.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 1995 lbs
904 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 565/800/980/1298 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 68.9 inches
175 cm |
Weight | 2800 to 3086 pounds |
Front tire | 8-16 |
Rear tire | 12.4-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.268x3.638 inches
83 x 92 mm |
Power | 29.6 hp
22.1 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |
Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |

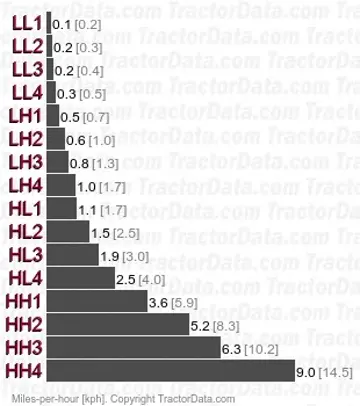

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Dimensions
Kubota GL300 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 12.4-26 |
Dimensions | |
|---|---|
Wheelbase | 68.9 inches
175 cm |
Length | 125.2 inches
318 cm |
Width | 55.9 inches
141 cm |
Height (ROPS) | 78 inches
198 cm |
Height (cab) | 78.4 inches
199 cm |
ROPS Weight | 2800 lbs
1270 kg |
Cab Weight | 3086 lbs
1399 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 42.7 to 58.1 inches
108 to 147 cm |
Photos
Kubota GL300 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota GL300 based on its 29.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota GL300.
Estimated Continuous Field Runtime: 6 hrs
Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (9.3 gal / 35 L).
Estimated 75% Load Fuel Burn~1.5 gal/hr (5.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota GL300 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota GL300.
Converted Equivalents:
Horsepower (HP)29.6 hp
Kilowatts (kW)22.1 kW
Metric Horsepower (PS / CV)30 PS
Direct Competitor Comparison
Compare Kubota GL300 against same-era industry alternatives in the same horsepower class.
Current Model
Kubota
Kubota GL300
Engine Power:Diesel (listed): 29.6 hp / 22.1 kW
★ Baseline Reference
