Kubota GL-46

The Kubota GL-46 is a tractor produced by Kubota. It is equipped with a 152.5 ci 2.5 L engine. The rated power output is 46 hp 34.3 kW. Transmission: 16 forward and reverse. Operating weight: 3748 to 4167 pounds.

Overview

	1991 - 1995 GL SeriesCompact Utility tractor
1991 - 1995
GL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota GL-46 Engine
Kubota 2.5L 5-cyl diesel
Fuel tank	13.2 gal 50.0 L
Engine details ...

Kubota GL-46 Transmission
16-speed
Transmission details ...

Kubota GL-46 Power
Engine	46 hp 34.3 kW

Mechanical
Four-wheel drive
Power steering
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	JIS1

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	585@2600
	789@2600
	961@2600
	1263@2600

Dimensions & Tires
Wheelbase	78.2 inches 198 cm
Weight	3748 to 4167 pounds
Front tire	8-18
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 152.5 ci / 2.5 L Diesel

Manufacturer	Kubota F2503
Fuel Type	Diesel
Configuration	5-cylinder, liquid-cooled
Displacement	152.5 ci 2.5 L
Bore/Stroke	3.3x3.6 inches 84 x 91 mm
Power	46 hp 34.3 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

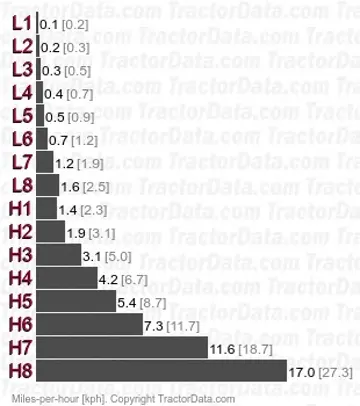

Transmission — 16 forward and reverse

Gears	16 forward and reverse

Dimensions

Kubota GL-46 Tires
Standard tires (ag)	Front: 8-18. Rear: 13.6-28

Dimensions
Wheelbase	78.2 inches 198 cm
Length	142.9 inches 362 cm
Width	61.4 inches 155 cm
Height (ROPS)	86.6 inches 219 cm
Height (cab)	92.9 inches 235 cm
ROPS Weight	3748 lbs 1700 kg
Cab Weight	4167 lbs 1890 kg
Ground clearance	14.2 inches 36 cm
Front tread	47.4 inches 120 cm
Rear tread	45.3 to 63.4 inches 115 to 161 cm

Photos

Kubota GL-46 tractor photo
