Kubota KL385

The Kubota KL385 is a tractor produced by Kubota. It is equipped with a 134.1 ci 2.2 L engine. The rated power output is 37.4 hp 27.9 kW. Transmission: 24 forward and 16 reverse. Operating weight: 3351 to 3781 pounds.

Overview

	2008 - 2009 KL SeriesCompact Utility tractor
2008 - 2009
KL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
KL385	standard
KL385H	high-speed

Kubota KL385 Engine
Kubota 2.2L 4-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

Kubota KL385 Transmission
24-speed
Transmission details ...

Kubota KL385 Power
Engine	37.4 hp 27.9 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	540@2600
	762@2600
	944@2600
	1258@2600
	-944@2600

Dimensions & Tires
Wheelbase	74.4 inches 188 cm
Weight	3351 to 3781 pounds
Front tire	8-18
Rear tire	12.4-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator Manual KL (T01850-1920-1)

Engine

Engine Detail — 134.1 ci / 2.2 L Diesel

Manufacturer	Kubota V2203
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	134.1 ci 2.2 L
Bore/Stroke	3.43x3.64 inches 87 x 92 mm
Power	37.4 hp 27.9 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

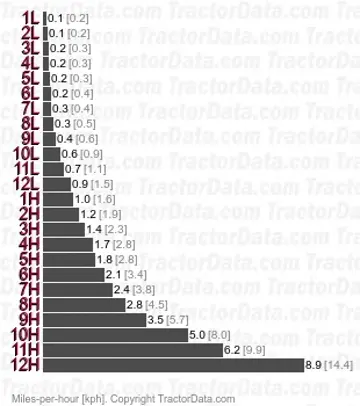

Transmission — 24 forward and 16 reverse

Gears	24 forward and 16 reverse
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.

Dimensions

Kubota KL385 Tires
Standard tires (ag)	Front: 8-18. Rear: 12.4-28

Dimensions
Wheelbase	74.4 inches 188 cm
Length	125.2 inches 318 cm
Width	58.9 inches 149 cm
Height (ROPS)	91.3 inches 231 cm
Height (cab)	86.6 inches 219 cm
ROPS Weight	3351 lbs 1520 kg
Cab Weight	3781 lbs 1715 kg
Ground clearance	15.8 inches 40 cm
Front tread	47.2 inches 119 cm
Rear tread	44.9/56.3 inches 114/143 cm

Photos

Kubota KL385 tractor photo
