Kubota L3560
The Kubota L3560 is a tractor produced by Kubota. It is equipped with a 111.4 ci 1.8 L engine. The rated power output is 35 hp 26.1 kW. Transmission: HST Plus. Operating weight: 3483 to 3880 pounds.
Engine Power
35 hp
26.1 kW
Fuel & Capacities
13.5 gal
51.1 L
Transmission
HST Plus
Operating Weight
3483 to 3880 pounds
Kubota L3560 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2013 -
L60 SeriesCompact Utility tractor |
|---|---|
2013 - | |
L60 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
L3560DT | 4WD |
L3560GST | 4WD 12-speed |
L3560HST | hydrostatic |
L3560HSTC | hydro cab |
Kubota L3560 Engine | |
|---|---|
Kubota 1.8L 3-cyl diesel | |
Fuel tank | 13.5 gal
51.1 L |
Engine details ...  | |
Kubota L3560 Power | |
|---|---|
Engine (gross) | 37 hp
27.6 kW |
Engine (net) | 35 hp
26.1 kW |
PTO (claimed) | 29.5 hp (gear)
22.0 kW |
28 hp (hydro)
20.9 kW | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post foldable ROPS. Grand Cab with air-conditioning available with hydrostatic. | |
Hydraulics | |
|---|---|
Gear Pump flow | 8.3 gpm
31.4 lpm |
Hydro Pump flow | 8.1 gpm
30.7 lpm |
Gear Total flow | 13.2 gpm
50.0 lpm |
Hydro Total flow | 12.8 gpm
48.4 lpm |
Gear Steering flow | 4.9 gpm
18.5 lpm |
Hydro Steering flow | 4.7 gpm
17.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control, draft control optional |
Rear lift (at 24"/610mm) | 2646 lbs
1200 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.1 inches
180 cm |
Weight | 3483 to 3880 pounds |
Front tire | 7.0-16 |
Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 40 |
Cab Charging amps | 60 |
Battery volts | 12 |
Engine
Engine Detail — 111.4 ci / 1.8 L Diesel
Manufacturer | Kubota |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 111.4 ci
1.8 L |
Bore/Stroke | 3.4x4.0 inches
86 x 102 mm |
Emissions | Tier IV |
Emission control | exhaust gas recirculation (EGR) |
Power (net) | 35 hp
26.1 kW |
Power (gross) | 37 hp
27.6 kW |
Fuel system | direct injection |
Rated RPM | 2700 (gear) |
2600 (hydro) | |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
8-speed synchronized shuttle | |
12-speed | |
hydrostatic |

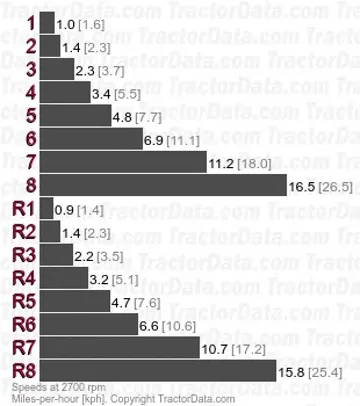

Transmission — 8 forward and reverse synchronized shuttle
Type | synchronized shuttle |
Gears | 8 forward and reverse |
Clutch | mechanical dry disc |
 | |

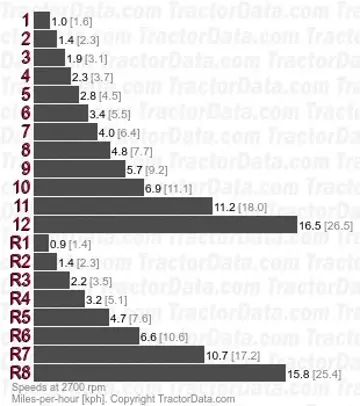

Transmission — Kubota Glide Shift
Transmission | Kubota Glide Shift |
Gears | 12 forward and 8 reverse |
Clutch | hydraulic dry disc |
 | |
Transmission — HST Plus
Transmission | HST Plus |
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Hydrostatic transmission with three ranges plus Hydro Dual Speed Hi-Lo. The Dual Speed allows rapid switching between two speeds in range, either automatically or with a lever on the steering column. | |
 | |
Dimensions
Kubota L3560 Tires | |
|---|---|
Ag front | 7.0-16 |
Ag rear | 12.4-24 |
Dimensions | |
|---|---|
Wheelbase | 71.1 inches
180 cm |
Length | 115 inches
292 cm |
Width | 59.8 inches (min)
151 cm |
Height (ROPS) | 97.2 inches
246 cm |
Height (cab) | 90.6 inches
230 cm |
Ground clearance | 13.5 inches
34 cm |
Flange rear axle | |
Front tread | 45.5 inches
115 cm |
Rear tread | 47.2/51.2/54.5/58.3 inches
119/130/138/148 cm |
Kubota L3560 Weight | |
|---|---|
3483 lbs (DT ROPS)
1579 kg | |
3494 lbs (GST ROPS)
1584 kg | |
3505 lbs (hydro ROPS)
1589 kg | |
3880 lbs (hydro cab)
1759 kg | |
Attachments
Attachment overview | |
|---|---|
Snowblower | |
Blade | |
Kubota LA555 loader | |
Kubota LA805 loader | |
Backhoe |
Kubota BH77 Backhoe | |
|---|---|
Backhoe type | Kubota BH77 Backhoe |
Transport height | 80.4 inches
204 cm |
Bucket width | 10 inches
25 cm |
12 inches
30 cm | |
16 inches
40 cm | |
24 inches
60 cm | |
Digging depth | 91 inches
231 cm |
Loading height | 64.4 inches
163 cm |
Bucket Rotation | 182° |
Swing Arc | 180° |
Bucket force | 3339 lbs
1514 kg |
Dipperstick force | 2097 lbs
951 kg |
Kubota BH92 Backhoe | |
|---|---|
Backhoe type | Kubota BH92 Backhoe |
Transport height | 100.1 inches
254 cm |
Bucket width | 12 inches
30 cm |
16 inches
40 cm | |
24 inches
60 cm | |
30 inches
76 cm | |
36 inches
91 cm | |
Digging depth | 109.8 inches
278 cm |
Loading height | 84.3 inches
214 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 4548 lbs
2062 kg |
Dipperstick force | 2698 lbs
1223 kg |
Photos
Kubota L3560HSTC with loader and mower.
Kubota L3560HSTC, front view.
Kubota L3560HSTC, rear view.
Kubota L3560HST.
Kubota L3560HST.
Kubota L3560HST.
Kubota L3560 with front-mount flail mower.
Kubota L3560 with front-mount flail mower.
