Kubota GL-600
The Kubota GL-600 is a tractor produced by Kubota. It is equipped with a 167.6 ci 2.7 L engine. The listed engine power is Diesel (listed): 60 hp / 44.7 kW. Transmission: 16 forward and reverse. Operating weight: 4343 lbs 1969 kg.
Engine Power
Diesel (listed): 60 hp / 44.7 kW
Fuel & Capacities
13.2 gal
50.0 L
Transmission
16 forward and reverse
Operating Weight
4343 lbs
1969 kg
Overview
 | 1995 - 1998
GL SeriesCompact Utility tractor
GL Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota GL-600 Engine | |
|---|---|
Kubota 2.7L 5-cyl diesel | |
Fuel tank | 13.2 gal
50.0 L |
Engine details ...  | |
Kubota GL-600 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Kubota GL-600 Power | |
|---|---|
Engine | 60 hp
44.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 588@2800 |
794@2800 | |
966@2800 | |
1270@2800 | |
-794@2800 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 79.3 inches
201 cm |
Weight | 4343 lbs
1969 kg |
Front tire | 8.3-20 |
Rear tire | 12.4-32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
GL (T0180-1921-7) published in 1995 |
Engine
Engine Detail — 167.6 ci / 2.7 L Diesel
Manufacturer | Kubota F2803 |
Fuel Type | Diesel |
Configuration | 5-cylinder, liquid-cooled |
Displacement | 167.6 ci
2.7 L |
Bore/Stroke | 3.4x3.6 inches
86 x 91 mm |
Power | 60 hp
44.7 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Transmission

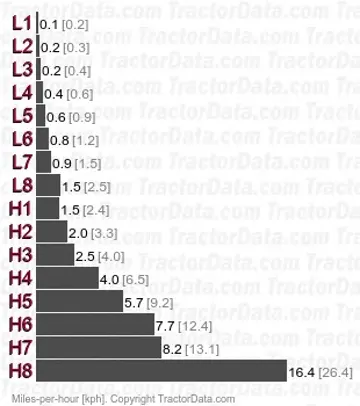

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
 | |
Dimensions
Kubota GL-600 Tires | |
|---|---|
Standard tires (ag) | Front: 8.3-20. Rear: 12.4-32 |
Dimensions | |
|---|---|
Wheelbase | 79.3 inches
201 cm |
Length | 142.9 inches
362 cm |
Width | 59.3 inches
150 cm |
Height (cab) | 92.9 inches
235 cm |
Weight | 4343 lbs
1969 kg |
Ground clearance | 15.6 inches
39 cm |
Front tread | 48.2 inches
122 cm |
Rear tread | 46.3 to 61.8 inches
117 to 156 cm |
Photos
Kubota GL-600 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota GL-600 based on its 60 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota GL-600.
Estimated Continuous Field Runtime: 4.2 hrs
Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (13.2 gal / 50 L).
Estimated 75% Load Fuel Burn~3.1 gal/hr (11.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota GL-600 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota GL-600.
Converted Equivalents:
Horsepower (HP)60 hp
Kilowatts (kW)44.7 kW
Metric Horsepower (PS / CV)60.8 PS
Direct Competitor Comparison
Compare Kubota GL-600 against same-era industry alternatives in the same horsepower class.
Current Model
Kubota
Kubota GL-600
Engine Power:Diesel (listed): 60 hp / 44.7 kW
★ Baseline Reference
