Kubota GM49

The Kubota GM49 is a tractor produced by Kubota. It is equipped with a 202.5 ci 3.3 L engine. The rated power output is 48.3 hp 36.0 kW. Transmission: 24 forward and reverse. Operating weight: 4608 to 4927.3 pounds.

Overview

	1998 - 2006 GM SeriesUtility tractor
1998 - 2006
GM Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota GM49 Engine
Kubota 3.3L 4-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

Kubota GM49 Transmission
24-speed
Transmission details ...

Kubota GM49 Power
Engine	48.3 hp 36.0 kW
PTO (claimed)	44.8 hp 33.4 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Pump flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift	3814 lbs 1730 kg
	5004 lbs*With optional lift-assist cylinder. 2269 kg

Power Take-off (PTO)
Rear PTO Type	569/799/1130 (1.375)

Dimensions & Tires
Wheelbase	80.7 inches 204 cm
Weight	4608 to 4927.3 pounds
Front tire	8-18
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	electric
Battery volts	12

Engine

Engine Detail — 202.5 ci / 3.3 L Diesel

Manufacturer	Kubota V3300
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	202.5 ci 3.3 L
Bore/Stroke	3.86x4.33 inches 98 x 110 mm
Power	48.3 hp 36.0 kW
Rated RPM	2200
Starter	negative
Starter volts	12

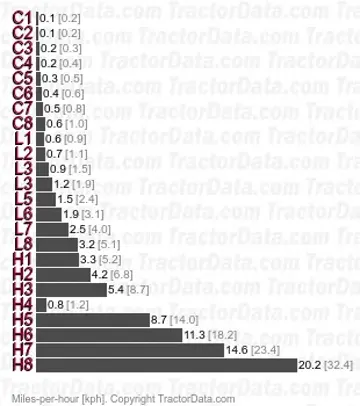

Transmission

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Eight gears in three ranges with shuttle.

Dimensions

Kubota GM49 Tires
Standard tires (ag)	Front: 8-18. Rear: 13.6-28

Dimensions
Wheelbase	80.7 inches 204 cm
Length	143.9 inches 365 cm
Width	61.6 inches 156 cm
Height (ROPS)	95.7 inches 243 cm
Height (cab)	93.7 inches 237 cm
ROPS Weight	4608 lbs 2090 kg
Cab Weight	4927.3 lbs 2235 kg
Ground clearance	14.8 inches 37 cm
Front tread	47.2 inches 119 cm
Rear tread	48 to 63.4 inches 121 to 161 cm

Photos

Kubota GM49 tractor photo
