Kubota MX4700

The Kubota MX4700 is a tractor produced by Kubota. It is equipped with a 148.6 ci 2.4 L engine. The rated power output is 46 hp 34.3 kW. Transmission: Synchro Shuttle. Drive type: 4x2 2WD. Operating weight: 3362 to 3770 pounds.

Overview

	2009 - 2014 MX SeriesUtility tractor
2009 - 2014
MX Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor
Original price was $15,989 in 2011

Variants
MX4700F	2WD gear
MX4700DT	4WD gear
MX4700HST	4WD hydro

Kubota MX4700 Engine
Kubota 2.4L 4-cyl diesel
Engine details ...

Kubota MX4700 Power
Engine (gross)	48.2 hp 35.9 kW
Engine (net)	46 hp 34.3 kW
PTO (claimed)	39.5 hp (gear) 29.5 kW
	38 hp (hydro) 28.3 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	rear standard
Steering	hydrostatic power
Mechanical wet disc brakes
Two-post foldable ROPS. Optional canopy.

Capacity
Fuel	12.7 gal 48.1 L
Hydraulic system	11.6 gal 43.9 L
Front axle	9.5 qts 9.0 L

Hydraulics
Type	open center
Capacity	11.6 gal 43.9 L
Valves	0 to 3
Pump flow	9.5 gpm 36.0 lpm
Total flow	14.4 gpm 54.5 lpm
Steering flow	4.9 gpm 18.5 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at ends)	2,870 lbs 1301 kg
Rear lift (at 24"/610mm)	2,310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2700

Dimensions & Tires
Wheelbase	74.6 inches 189 cm
Weight	3362 to 3770 pounds
Front tire	7.5L-15
Rear tire	14.9-26 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	582
Battery volts	12

Engine

Engine Detail — 148.6 ci / 2.4 L Diesel

Manufacturer	Kubota V2403-M
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	148.6 ci 2.4 L
Emissions	Interim Tier IV
Emission control	EGR
Power (net)	46 hp 34.3 kW
Power (gross)	48.2 hp 35.9 kW
Air cleaner	dual dry element
Rated RPM	2700
Starter	electric
Starter volts	12
Oil capacity	8.5 qts 8.0 L
Coolant capacity	7.4 qts 7.0 L

Transmission

Transmission options
8-speed partially synchronized
hydrostatic

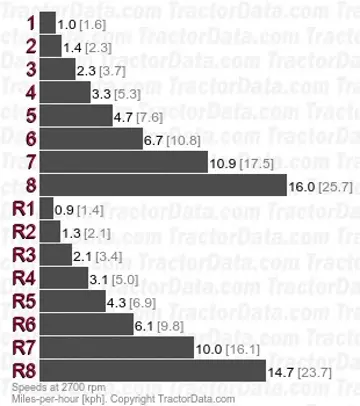

Transmission — Synchro Shuttle

Transmission	Synchro Shuttle
Type	partially synchronized
Gears	8 forward and reverse
Clutch	dry disc
Oil capacity	46.4 qts 43.9 L
Transmission is synchronized between gears 3-4 and shuttle shifting.
With 14.9-26 R1 rear tires.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Hydrostatic transmission with three ranges and treadle foot pedal. Cruise control standard.
With 14.9-26 R1 rear tires.

Dimensions

Kubota MX4700 Tires
Standard tires (ag)	Front: 7.5L-15. Rear: 14.9-26 (2WD)
	Front: 9.5-16. Rear: 14.9-26 (4WD)
Optional tires (ag)	Front: 7.5L-15. Rear: 13.6-28 (2WD)
	Front: 9.5L-15. Rear: 13.6-28 (2WD)
	Front: 9.5L-14.9-26 . Rear: (2WD)
	Front: 9.5-16. Rear: 13.6-28 (4WD)
Lawn/turf front	29x12.50-15
	305R343
Lawn/turf rear	44x18-20
	610R470
Industrial front	12-16.5 (4WD)
Industrial rear	17.5L-24 (4WD)

Dimensions
Wheelbase	74.6 inches 189 cm
Length	127.8 inches (2WD) 324 cm
	122.8 inches (4WD) 311 cm
Width	69.7 inches 177 cm
Height (ROPS)	95.7 inches 243 cm
Ground clearance	15.9 inches (2WD) 40 cm
	15.2 inches (4WD) 38 cm
Front tread	50.4 to 62.2 inches 128 to 157 cm (2WD)
Front tread	52.5 to 52.2 inches 133 to 132 cm
Rear tread	54.1 to 58.7 inches 137 to 149 cm

Kubota MX4700 Weight
	3,362 lbs (2WD gear) 1525 kg
	3,616 lbs (4WD gear) 1640 kg
	3,770 lbs (4WD hydro) 1710 kg

Attachments

Attachment overview
Front-end loader
Backhoe

Kubota BH92 Backhoe
Backhoe type	Kubota BH92 Backhoe

Photos

Kubota MX4700 tractor photo
