Kubota GM82
The Kubota GM82 is a tractor produced by Kubota. It is equipped with a 202.5 ci 3.3 L engine. The rated power output is 80.9 hp 60.3 kW. Transmission: 24 forward and reverse. Operating weight: 6217 lbs 2820 kg.
Engine Power
80.9 hp
60.3 kW
Fuel & Capacities
27.7 gal
104.8 L
Transmission
24 forward and reverse
Operating Weight
6217 lbs
2820 kg
Kubota GM82 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1998 - 2007
GM SeriesUtility tractor |
|---|---|
1998 - 2007 | |
GM Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota GM82 Engine | |
|---|---|
Kubota 3.3L 4-cyl diesel | |
Fuel tank | 27.7 gal
104.8 L |
Engine details ...  | |
Kubota GM82 Transmission | |
|---|---|
24-speed | |
Transmission details ...  |
Kubota GM82 Power | |
|---|---|
Engine | 80.9 hp
60.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 587/827/1170 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.7 inches
235 cm |
Weight | 6217 lbs
2820 kg |
Front tire | 9.5-24 |
Rear tire | 13.9-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | electric |
Battery volts | 12 |
Engine
Engine Detail — 202.5 ci / 3.3 L Diesel
Manufacturer | Kubota V3300T |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 202.5 ci
3.3 L |
Bore/Stroke | 3.86x4.33 inches
98 x 110 mm |
Power | 80.9 hp
60.3 kW |
Rated RPM | 2600 |
Starter | negative |
Starter volts | 12 |
Transmission

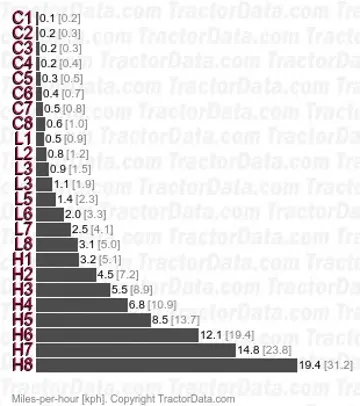

Transmission — 24 forward and reverse
Gears | 24 forward and reverse |
Eight gears in three ranges with shuttle. | |
 | |
Dimensions
Kubota GM82 Tires | |
|---|---|
Standard tires (ag) | Front: 9.5-24. Rear: 13.9-36 |
Dimensions | |
|---|---|
Wheelbase | 92.7 inches
235 cm |
Length | 156.9 inches
398 cm |
Width | 69.7 inches
177 cm |
Height (cab) | 99.4 inches
252 cm |
Weight | 6217 lbs
2820 kg |
Ground clearance | 18.5 inches
46 cm |
Front tread | 47.6 to 55.1 inches
120 to 139 cm |
Rear tread | 48 to 55.1 inches
121 to 139 cm |
Photos
Kubota GM82 tractor photo
