Kubota GT-21

The Kubota GT-21 is a tractor produced by Kubota. It is equipped with a 85 ci 1.4 L engine. The rated power output is 20.7 hp 15.4 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1940 to 2028 pounds.

Overview

	2001 - 2002 GT SeriesCompact Utility tractor
2001 - 2002
GT Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
GT-21	gear
GT-21F	hydrostatic
GT-21J	large tire

Kubota GT-21 Engine
Kubota 1.4L 3-cyl diesel
Fuel tank	7.4 gal 28.0 L
Engine details ...

Kubota GT-21 Power
Engine	20.7 hp 15.4 kW

Mechanical
Four-wheel drive
Two-post folding ROPS.

Tractor hitch
Rear Type	1

Power Take-off (PTO)
Rear PTO Type	540/750/1000 (1.375)

Dimensions & Tires
Wheelbase	57.1 inches 145 cm
Weight	1940 to 2028 pounds
Front tire	6-14
Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 85 ci / 1.4 L Diesel

Manufacturer	Kubota D1403
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	85 ci 1.4 L
Bore/Stroke	3.1x3.6 inches 79 x 91 mm
Power	20.7 hp 15.4 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed
hydrostatic

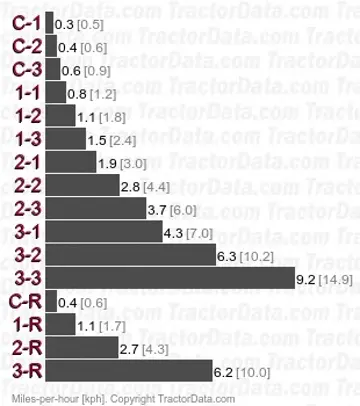

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Kubota GT-21 Tires
Standard tires (ag)	Front: 6-14. Rear: 8.3-24
GT-21J Optional tires (ag)	Front: 6-14. Rear: 9.5-22

Dimensions
Wheelbase	57.1 inches 145 cm
Length	110.4 inches 280 cm
Width	45.3 inches 115 cm
Height (ROPS)	74.6 inches 189 cm
Height (cab)	74.6 inches 189 cm
Gear Weight	1940 lbs 879 kg
Hydro Weight	2028 lbs 919 kg
Ground clearance	12.6 inches 32 cm
Front tread	37.4 inches 94 cm
Rear tread	36 to 40.8 inches 91 to 103 cm

Photos

Kubota GT-21 tractor photo
