Kubota GT-3

The Kubota GT-3 is a tractor produced by Kubota. It is equipped with a 86.8 ci 1.4 L engine. The rated power output is 20.7 hp 15.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1918 to 1973 pounds.

Overview

	1992 - 2000 GT SeriesCompact Utility tractor
1992 - 2000
GT Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
GT-3	gear
GT-3F	hydrostatic
GT-3J	large tire

Kubota GT-3 Engine
Kubota 1.4L 4-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Kubota GT-3 Transmission
12-speed
Transmission details ...

Kubota GT-3 Power
Engine	20.7 hp 15.4 kW

Mechanical
Four-wheel drive
Two-post folding ROPS. Cab optional.

Tractor hitch
Rear Type	0

Power Take-off (PTO)
Rear PTO Type	540/750/1000 (1.375)

Dimensions & Tires
Wheelbase	57.1 inches 145 cm
Weight	1918 to 1973 pounds
Front tire	6-14
Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual GT-3-5-8 (37560-8182-1) published in 1992

Engine

Engine Detail — 86.8 ci / 1.4 L Diesel

Manufacturer	Kubota V1405L
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	86.8 ci 1.4 L
Bore/Stroke	2.99x2.76 inches 76 x 70 mm
Power	20.7 hp 15.4 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

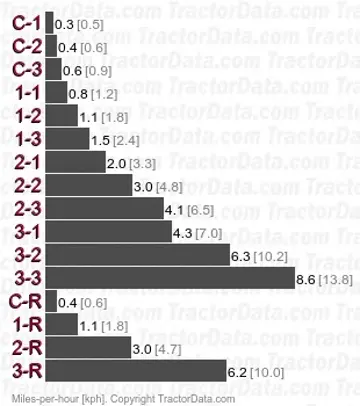

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Three gears (1-3), plus reverse, in four ranges (creeper and 1-3).

Dimensions

Kubota GT-3 Tires
Standard tires (ag)	Front: 6-14. Rear: 8.3-24
GT-3J Optional tires (ag)	Front: 6-14. Rear: 9.5-22

Dimensions
Wheelbase	57.1 inches 145 cm
Length	111 inches 281 cm
Width	45.7 inches 116 cm
Height (ROPS)	73.2 inches 185 cm
Height (cab)	76.2 inches 193 cm
ROPS Weight	1918 lbs 870 kg
Cab Weight	1973 lbs 894 kg
Ground clearance	12.6 inches 32 cm
Front tread	37.4 inches 94 cm
Rear tread	36.2/40.9 inches 91/103 cm

Photos

Kubota GT-3

Kubota GT-3

Kubota GT-3

Kubota GT-3

Kubota GT-3 operator station and controls.
