Kubota GT-30
The Kubota GT-30 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (listed): 29.6 hp / 22.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 2094 to 2183 pounds.
Overview
 | 2001 - 2002
GT SeriesCompact Utility tractor
GT Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
GT-30 | gear |
GT-30F | hydrostatic |
GT-30J | large tire |
Kubota GT-30 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.4 gal
28.0 L |
Engine details ...  | |
Kubota GT-30 Power | |
|---|---|
Engine | 29.6 hp
22.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Two-post folding ROPS. |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/750/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 59.1 inches
150 cm |
Weight | 2094 to 2183 pounds |
Front tire | 7-14 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.268x3.638 inches
83 x 92 mm |
Power | 29.6 hp
22.1 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |

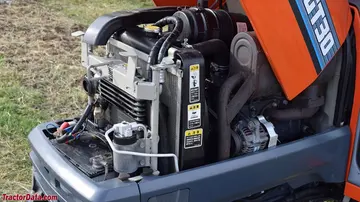

Kubota GT-30 Engine | |
|---|---|
 | |
Image courtesy of Agro-Engineering |
Transmission
Transmission options | |
|---|---|
12-speed | |
hydrostatic |

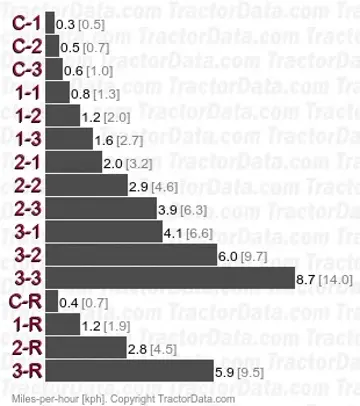

Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Three gears (1-3), plus reverse, in four ranges (creeper and 1-3). | |
 | |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
 | |
Dimensions
Kubota GT-30 Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 11.2-24 |
GT-30J Optional tires (ag) | Front: 7-16. Rear: 11.2-26 |
Dimensions | |
|---|---|
Wheelbase | 59.1 inches
150 cm |
Length | 112.4 inches
285 cm |
Width | 52 inches
132 cm |
Height (ROPS) | 76.2 inches
193 cm |
Height (cab) | 77 inches
195 cm |
Gear Weight | 2094 lbs
949 kg |
Hydro Weight | 2183 lbs
990 kg |
Ground clearance | 13.4 inches
34 cm |
Front tread | 41.3 inches
104 cm |
Rear tread | 41.3 to 49.84 inches
104 to 126 cm |
Photos
Kubota GT30 with ROPS.
Kubota GT30 with ROPS.
Kubota GT30 with ROPS.
Kubota GT30 with cab.
Kubota GT30 with cab.
Kubota GT30 with cab.
Kubota GT30 with cab.
Kubota GT30 with cab.
Kubota GT30 with cab.
Kubota GT30 cab interior.
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota GT-30 based on its 29.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota GT-30.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (7.4 gal / 28 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota GT-30 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota GT-30.
Converted Equivalents:
