Kubota KL21
The Kubota KL21 is a tractor produced by Kubota. It is equipped with a 85 ci 1.4 L engine. The rated power output is 20.7 hp 15.4 kW. Transmission: 24 forward and 16 reverse. Operating weight: 2840 to 2877 pounds.
Engine Power
20.7 hp
15.4 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
24 forward and 16 reverse
Operating Weight
2840 to 2877 pounds
Kubota KL21 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1999 - 2005
KL SeriesCompact Utility tractor |
|---|---|
1999 - 2005 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota KL21 Engine | |
|---|---|
Kubota 1.4L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota KL21 Power | |
|---|---|
Engine | 20.7 hp
15.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 564@2600 |
795@2600 | |
985@2600 | |
1313@2600 | |
-985@2600 | |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 63 inches
160 cm |
Weight | 2840 to 2877 pounds |
Front tire | 6-14 |
Rear tire | 8.3-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 85 ci / 1.4 L Diesel
Manufacturer | Kubota D1403 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 85 ci
1.4 L |
Bore/Stroke | 3.1x3.6 inches
79 x 91 mm |
Power | 20.7 hp
15.4 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |

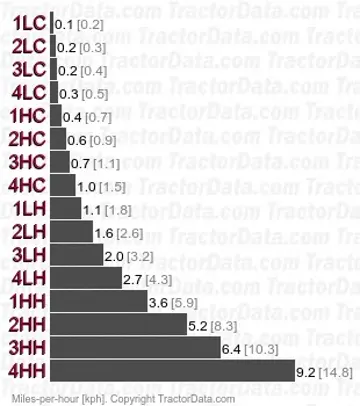

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges with additional creeper range and shuttle shift. | |
 | |
Transmission | |
Gears | 16 forward and reverse |
Eight gears in two ranges (creeper and high) with shuttle shift. | |
Gears | 24 forward and 16 reverse |
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin. | |
Dimensions
Kubota KL21 Tires | |
|---|---|
Standard tires (ag) | Front: 6-14. Rear: 8.3-24 |
Dimensions | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 63 inches
160 cm |
ROPS Length | 116.7 inches
296 cm |
Cab Length | 118.7 inches
301 cm |
Width | 48 inches
121 cm |
Height (ROPS) | 77 inches
195 cm |
Height (cab) | 77.6 inches
197 cm |
ROPS Weight | 2840 lbs
1288 kg |
Cab Weight | 2877 lbs
1305 kg |
Ground clearance | 13.2 inches
33 cm |
Front tread | 37.4 inches
94 cm |
Rear tread | 39.8/44.5 inches
101/113 cm |
