Kubota KL280 Hi-Speed
The Kubota KL280 Hi-Speed is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: 30 forward and 20 reverse. Operating weight: 2866 to 3252 pounds.
Engine Power
27.6 hp
20.6 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
30 forward and 20 reverse
Operating Weight
2866 to 3252 pounds
Kubota KL280 Hi-Speed Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2007
KL SeriesCompact Utility tractor |
|---|---|
2006 - 2007 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota KL280 Engine | |
|---|---|
Kubota 1.6L 3-cyl diesel | |
Fuel tank | 9.25 gal
35.0 L |
Engine details ...  | |
Kubota KL280 Power | |
|---|---|
Engine | 27.6 hp
20.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 564@2600 |
795@2600 | |
985@2600 | |
1313@2600 | |
-985@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 67.7 inches
171 cm |
Weight | 2866 to 3252 pounds |
Front tire | 7-16 |
Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 100.5 ci / 1.6 L Diesel
Manufacturer | Kubota D1703 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.5 ci
1.6 L |
Bore/Stroke | 3.43x3.64 inches
87 x 92 mm |
Power | 27.6 hp
20.6 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
20-speed | |
30-speed |

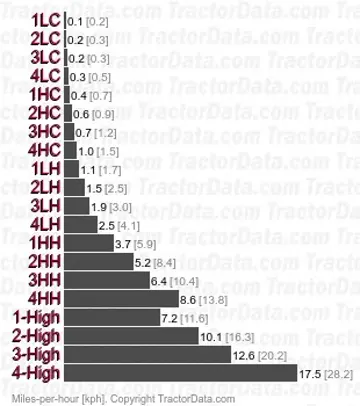

Transmission — 20 forward and reverse
Gears | 20 forward and reverse |
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed). | |
 | |
Transmission | |

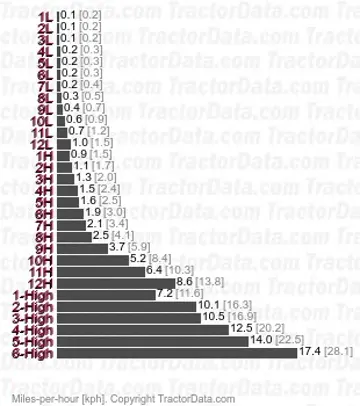

Gears | 30 forward and 20 reverse |
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available. | |
 | |
Dimensions
Kubota KL280 Tires | |
|---|---|
Standard tires (ag) | Front: 7-16. Rear: 12.4-24 |
Dimensions | |
|---|---|
Wheelbase | 67.7 inches
171 cm |
Length | 123.6 inches
313 cm |
Width | 54 inches
137 cm |
Height (ROPS) | 76.8 inches
195 cm |
Height (cab) | 81.3 inches
206 cm |
ROPS Weight | 2866 lbs
1300 kg |
Cab Weight | 3252 lbs
1475 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 42.5 inches
107 cm |
Rear tread | 42.1/54 inches
106/137 cm |
