Kubota KL285
The Kubota KL285 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: 24 forward and 16 reverse. Operating weight: 2833 to 3285 pounds.
Engine Power
27.6 hp
20.6 kW
Fuel & Capacities
9.5 gal
36.0 L
Transmission
24 forward and 16 reverse
Operating Weight
2833 to 3285 pounds
Kubota KL285 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2008 - 2009
KL SeriesCompact Utility tractor |
|---|---|
2008 - 2009 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
KL285 | standard |
KL285H | high-speed |
Kubota KL285 Engine | |
|---|---|
Kubota 1.6L 3-cyl diesel | |
Fuel tank | 9.5 gal
36.0 L |
Engine details ...  | |
Kubota KL285 Power | |
|---|---|
Engine | 27.6 hp
20.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 561@2700 |
791@2700 | |
980@2700 | |
1307@2700 | |
-980@2700 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 67.7 inches
171 cm |
Weight | 2833 to 3285 pounds |
Front tire | 7-16 |
Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator Manual KL (T01850-1920-1) |
Engine
Engine Detail — 100.5 ci / 1.6 L Diesel
Manufacturer | Kubota D1703 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.5 ci
1.6 L |
Bore/Stroke | 3.43x3.64 inches
87 x 92 mm |
Power | 27.6 hp
20.6 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |

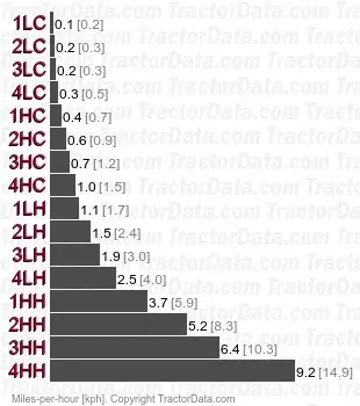

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges with additional creeper range and shuttle shift. | |
 | |
Transmission | |
Gears | 24 forward and 16 reverse |
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. | |
Dimensions
Kubota KL285 Tires | |
|---|---|
Standard tires (ag) | Front: 7-16. Rear: 12.4-24 |
Dimensions | |
|---|---|
Wheelbase | 67.7 inches
171 cm |
Length | 123.6 inches
313 cm |
Width | 54 inches
137 cm |
Height (ROPS) | 76.8 inches
195 cm |
Height (cab) | 83.5 inches
212 cm |
ROPS Weight | 2833 lbs
1285 kg |
Cab Weight | 3285 lbs
1490 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 42.5 inches
107 cm |
Rear tread | 42.1/54 inches
106/137 cm |
