Kubota L1-28

The Kubota L1-28 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: 16 forward and reverse. Operating weight: 2546 to 2624 pounds.

Overview

	1983 - 1985 L1 SeriesCompact Utility tractor
1983 - 1985
L1 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L1-28DT	4WD

Kubota L1-28 Engine
Kubota 1.5L 4-cyl diesel
Fuel tank	7.7 gal 29.1 L
Engine details ...

Kubota L1-28 Transmission
16-speed shuttle
Transmission details ...

Kubota L1-28 Power
Engine	27.6 hp 20.6 kW

Mechanical
Two- or four-wheel drive
Wet disc brakes
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/770/940/1250 (1.375)

Dimensions & Tires
Wheelbase	68.3 inches 173 cm
Weight	2546 to 2624 pounds
Front tire	5.00-15
2WD Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Instruction Manual L1 (31351-1921-6)

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota V1512
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Power	27.6 hp 20.6 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

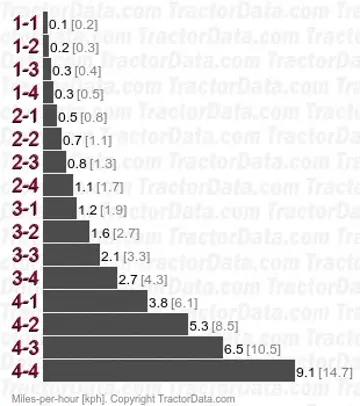

Transmission — 16 forward and reverse shuttle

Type	shuttle
Gears	16 forward and reverse
Clutch	dry disc
Four gears in four ranges with shuttle shift.

Dimensions

Kubota L1-28 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 13.6-24
4WD Standard tires (ag)	Front: 7-16. Rear: 13.6-24

Dimensions
Wheelbase	68.3 inches 173 cm
Length	124.4 inches 315 cm
Width	55.9 inches 141 cm
Height	77.8 inches 197 cm
2WD Weight	2546 lbs 1154 kg
4WD Weight	2624 lbs 1190 kg
2WD Ground clearance	14.4 inches 36 cm
4WD Ground clearance	12.4 inches 31 cm
2WD Front tread	41.3 to 57.1 inches 104 to 145 cm
4WD Front tread	41.3 inches 104 cm
Rear tread	42.5 to 61 inches 107 to 154 cm

Photos

Kubota L1-28 tractor photo
