Kubota L1-295

The Kubota L1-295 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 28.1 hp 21.0 kW. Transmission: 16 forward and reverse. Operating weight: 2546 to 2624 pounds.

Overview

	1988 - 1991 L1 SeriesCompact Utility tractor
1988 - 1991
L1 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota L1-295 Engine
Kubota 1.5L 4-cyl diesel
Engine details ...

Kubota L1-295 Transmission
16-speed
Transmission details ...

Kubota L1-295 Power
Engine	28.1 hp 21.0 kW
PTO (claimed)	27.1 hp 20.2 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Hydraulics
Pump flow	6.2 gpm 23.5 lpm

Tractor hitch
Rear Type	I
Rear lift	1488 lbs 674 kg

Power Take-off (PTO)
Rear PTO Type	600/836/1038/1350 (1.375)

Dimensions & Tires
Wheelbase	68.3 inches 173 cm
Weight	2546 to 2624 pounds
Front tire	5.00-15
2WD Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota V1512
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Power	28.1 hp 21.0 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

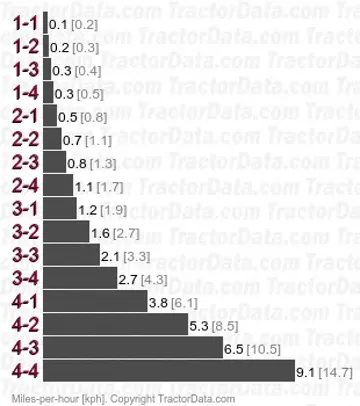

Transmission — 16 forward and reverse

Gears	16 forward and reverse

Dimensions

Kubota L1-295 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 13.6-24
4WD Standard tires (ag)	Front: 7-16. Rear: 13.6-24

Dimensions
Wheelbase	68.3 inches 173 cm
Length	124.4 inches 315 cm
Width	55.9 inches 141 cm
Height	56.3 inches 143 cm
2WD Weight	2546 lbs 1154 kg
4WD Weight	2624 lbs 1190 kg
2WD Ground clearance	14.4 inches 36 cm
4WD Ground clearance	12.4 inches 31 cm
2WD Front tread	41.3 to 57.1 inches 104 to 145 cm
4WD Front tread	41.3 inches 104 cm
Rear tread	42.5 to 61 inches 107 to 154 cm

Photos

Kubota L1-295
