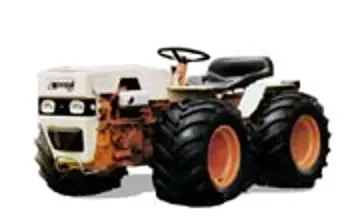

Pasquali 997

The Pasquali 997 is a tractor produced by Pasquali. It is equipped with a 68.6 ci 1.1 L engine. The listed engine power is Diesel (net): 25.5 hp / 19.0 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1786 lbs 810 kg.

Overview

	1970 - 1981 Utility tractor

Production
Manufacturer	Pasquali
Utility tractor
Built in Italy

Pasquali 997 Engine
Ruggerini 1.1L 2-cyl diesel
Engine details ...

Pasquali 997 Transmission
9-speed gear
Transmission details ...

Pasquali 997 Power
Engine (net)	25.5 hp 19.0 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Steering	mechanical
	power OptOptional
Mechanical drum brakes
Open operator station.

Hydraulics
Type	open center
Valves	0 or 1
Pump flow	2.6 gpm 9.8 lpm

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/750/ground

Dimensions & Tires
Wheelbase	46.5 inches 118 cm
Weight	1786 lbs 810 kg
Front tire	7.50x16
Rear tire	7.50x16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	92

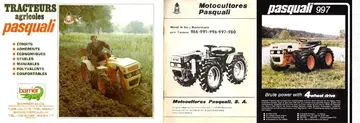

References
Tracteurs agricoles published by Pasquali
Manual de Uso y Maintenimiento
997 published by Pasquali

Engine

Engine Detail — 68.6 ci / 1.1 L Diesel

Manufacturer	Ruggerini RD-92/2
Fuel Type	Diesel
Configuration	2-cylinder, air-cooled
Displacement	68.6 ci 1.1 L
Bore/Stroke	3.64x3.68 inches 92 x 93 mm
Power (net)	25.5 hp 19.0 kW
Rated RPM	3000
Starter	electric
Starter volts	12

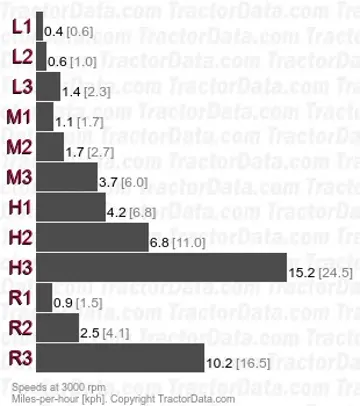

Transmission

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	mechanical dry disc
Three gears, plus reverse, in three ranges.

Dimensions

Pasquali 997 Tires
Ag front	7.50x16
Ag rear	7.50x16

Dimensions
Wheelbase	46.5 inches 118 cm
Length	96.5 inches 245 cm
Height (steering wheel)	42.1 inches 106 cm
Weight	1786 lbs 810 kg
Ground clearance	9.8 inches 24 cm
Front tread	33 to 58 inches 83 to 147 cm
Rear tread	33 to 58 inches 83 to 147 cm

Photos

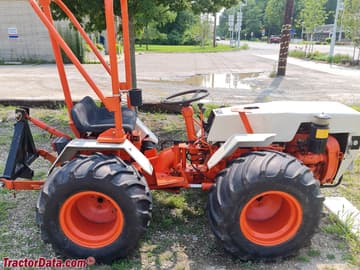

Pasquali 997
