Kubota L3130
The Kubota L3130 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 31 hp 23.1 kW. Transmission: Glide Shift. Operating weight: 463 lbs 210 kg.
Engine Power
31 hp
23.1 kW
Fuel & Capacities
10.6 gal
40.1 L
Transmission
Glide Shift
Operating Weight
463 lbs
210 kg
Kubota L3130 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2003 - 2007
L30 SeriesCompact Utility tractor |
|---|---|
2003 - 2007 | |
L30 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
L3130F | 2WD |
L3130DT | 4WD 8 speed |
L3130GST | 4WD 12 speed |
L3130HST | 4WD hydro |
Kubota L3130 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ...  | |
Kubota L3130 Power | |
|---|---|
Engine (gross) | 32.1 hp
23.9 kW |
Engine (net) | 31 hp
23.1 kW |
Gear PTO (claimed) | 25.5 hp
19.0 kW |
Hydro PTO (claimed) | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 3 OptOptional |
Pump flow | 8.3 gpm
31.4 lpm |
Total flow | 13.2 gpm
50.0 lpm |
Steering flow | 4.9 gpm
18.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control with optional draft control |
Rear lift (at 24"/610mm) | 2650 lbs
1202 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent OptOptional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 71.3 inches
181 cm |
4WD Wheelbase | 71.1 inches
180 cm |
Weight | 3120 to 3305 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Battery volts | 12 |
References | |
|---|---|
 | |
Grand L 30 Series published in 2004, by Kubota* | |
*Publication contains known errors. |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled inline |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.268x3.638 inches
83 x 92 mm |
Power (net) | 31 hp
23.1 kW |
Power (gross) | 32.1 hp
23.9 kW |
Fuel system | indirect injection |
Air cleaner | dual dry element |
Rated RPM | 2700 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
hydrostatic | |
8-speed fully synchronized | |
12-speed power shift |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
 | |

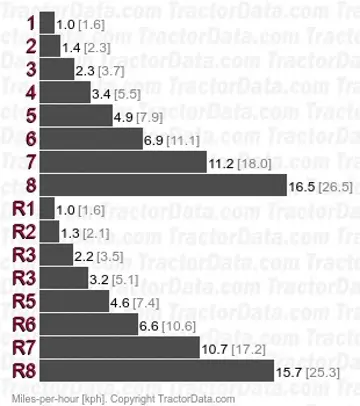

Transmission — FST
Transmission | FST |
Type | fully synchronized |
Gears | 8 forward and reverse |
Clutch | dry disc |
Synchronized transmission with mechanical shuttle. | |
 | |

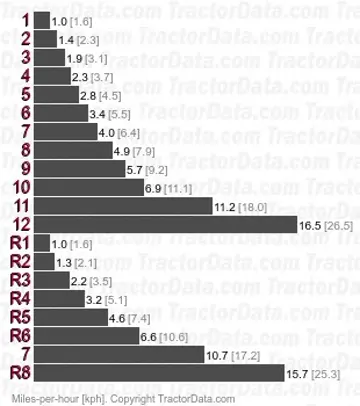

Transmission — Glide Shift
Transmission | Glide Shift |
Type | power shift |
Gears | 12 forward and 8 reverse |
 | |
Dimensions
Kubota L3130 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-16. Rear: 12.4-24 |
4WD Standard tires (ag) | Front: 7.2-16. Rear: 12.4-24 |
Dimensions | |
|---|---|
2WD Wheelbase | 71.3 inches
181 cm |
4WD Wheelbase | 71.1 inches
180 cm |
2WD Length | 119.1 inches
302 cm |
4WD Length | 114.8 inches
291 cm |
Width | 59.8 inches
151 cm |
Height (ROPS) | 90.7 inches
230 cm |
2WD Gear Weight | 3120 lbs
1415 kg |
4WD Hydro Weight | 3305 lbs
1499 kg |
Ground clearance | 14.2 inches
36 cm |
2WD Front tread | 47.6/51.6/55.5/59.4 inches
120/131/140/150 cm |
4WD Front tread | 45.5 inches
115 cm |
Rear tread | 47.2/51.2/54.5/58.3 inches
119/130/138/148 cm |
Attachments
Attachment overview | |
|---|---|
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Kubota LA513 loader | |
Kubota LA723 loader | |
Backhoe |
72" Mower deck | |
|---|---|
Type | mid-mount Kubota RC72-38 |
3-blade | |
Cutting width | 72 inches
182 cm |
Weight | 463 lbs
210 kg |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Kubota BL4690B Backhoe | |
|---|---|
Backhoe type | Kubota BL4690B Backhoe |
Transport height | 76.8 inches
195 cm |
Digging depth | 90.2 inches
229 cm |
Reach from pivot | 116.5 inches
295 cm |
Loading height | 75.5 inches
191 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 2950 lbs
1338 kg |
Dipperstick force | 1740 lbs
789 kg |
Kubota BH90 Backhoe | |
|---|---|
Backhoe type | Kubota BH90 Backhoe |
Transport height | 98.9 inches
251 cm |
Digging depth | 108.9 inches
276 cm |
Reach from pivot | 146.5 inches
372 cm |
Loading height | 95.3 inches
242 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 3871 lbs
1755 kg |
Dipperstick force | 2593 lbs
1176 kg |
Photos

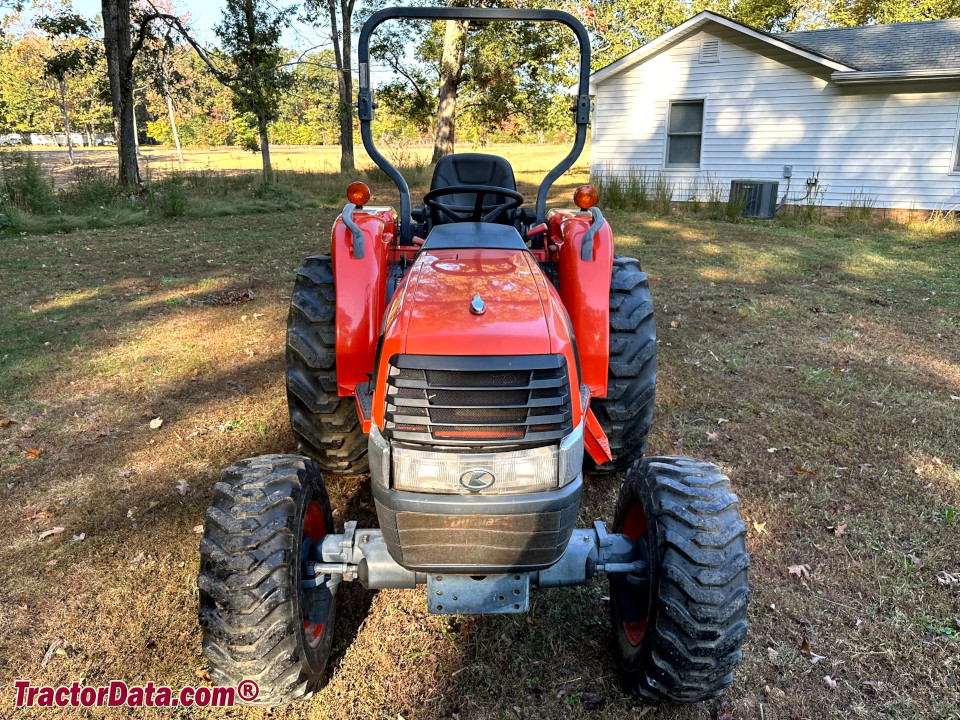

Kubota L3130DT compact utility tractor.
Kubota L3130 with LA723 front-end loader.
Kubota L3130 dashboard and controls.
