Kubota GL26

The Kubota GL26 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 16 forward and reverse. Operating weight: 2646 lbs 1200 kg.

Overview

	1990 - 1992 GL SeriesCompact Utility tractor
1990 - 1992
GL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota GL26 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Kubota GL26 Transmission
16-speed power shift
Transmission details ...

Kubota GL26 Power
Engine	25.6 hp 19.1 kW
PTO (claimed)	24.3 hp 18.1 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post folding ROPS.

Hydraulics
Pump flow	5.6 gpm 21.2 lpm

Tractor hitch
Rear Type	I
Rear lift	2061 lbs 934 kg

Power Take-off (PTO)
Rear PTO Type	568/803/985/1304 (1.375)

Dimensions & Tires
Wheelbase	64.8 inches 164 cm
Weight	2646 lbs 1200 kg
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota D1503
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.268x3.638 inches 83 x 92 mm
Power	25.6 hp 19.1 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

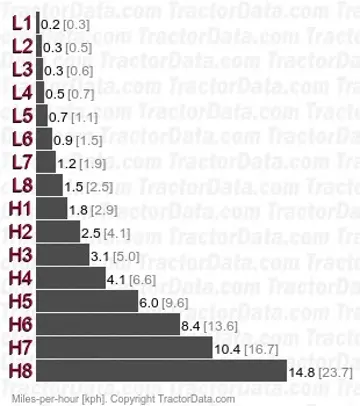

Transmission — 16 forward and reverse power shift

Type	power shift
Gears	16 forward and reverse
Eight power shift gears in two ranges with shuttle.

Dimensions

Kubota GL26 Tires
Standard tires (ag)	Front: 7-16. Rear: 11.2-24

Dimensions
Wheelbase	64.8 inches 164 cm
Length	120.1 inches 305 cm
Width	53.2 inches 135 cm
Height (ROPS)	76.6 inches 194 cm
Weight	2646 lbs 1200 kg
Ground clearance	13.6 inches 34 cm
Front tread	42.5 inches 107 cm
Rear tread	41.3 to 53 inches 104 to 134 cm

Photos

Kubota GL26 tractor photo
