Kubota GL260
The Kubota GL260 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 16 forward and reverse. Operating weight: 2601 to 2888 pounds.
Engine Power
25.6 hp
19.1 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
16 forward and reverse
Operating Weight
2601 to 2888 pounds
Kubota GL260 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1993 - 1995
GL SeriesCompact Utility tractor |
|---|---|
1993 - 1995 | |
GL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
GL260 | ROPS |
GL260Q | cab |
GL280J | large wheel |
Kubota GL260 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota GL260 Power | |
|---|---|
Engine | 25.6 hp
19.1 kW |
PTO (claimed) | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 5.6 gpm
21.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2061 lbs
934 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 568/803/985/1304 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 64.8 inches
164 cm |
Weight | 2601 to 2888 pounds |
Front tire | 7-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.268x3.638 inches
83 x 92 mm |
Power | 25.6 hp
19.1 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |

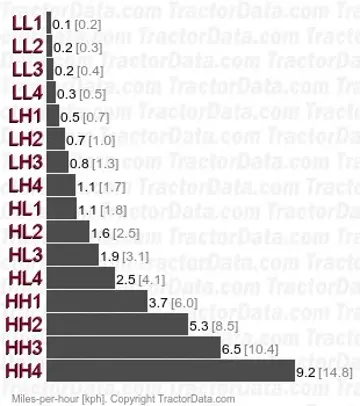

Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Dimensions
Kubota GL260 Tires | |
|---|---|
Standard tires (ag) | Front: 7-16. Rear: 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 64.8 inches
164 cm |
Length | 120.1 inches
305 cm |
Width | 53.2 inches
135 cm |
Height (ROPS) | 76.8 inches
195 cm |
Height (cab) | 78.5 inches
199 cm |
ROPS Weight | 2601 lbs
1179 kg |
Cab Weight | 2888 lbs
1309 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 42.5 inches
107 cm |
Rear tread | 41.3 to 53 inches
104 to 134 cm |
Photos
Kubota GL260 tractor photo
