Kubota L3710

The Kubota L3710 is a tractor produced by Kubota. It is equipped with a 113.3 ci 1.9 L engine. The listed engine power is Diesel (net): 36.6 hp / 27.3 kW; Diesel (gross): 38.5 hp / 28.7 kW. Transmission: Glide Shift (GST). Operating weight: 476 lbs 215 kg.

Overview

	1998 - 2002 Grand L10 SeriesCompact Utility tractor Grand L10 Series Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L3710DT	4WD Gear ROPS
L3710GST	4WD Glide Shift ROPS
L3710HST	4WD Hydro ROPS
L3710HSTC	4WD Hydro Cab

Kubota L3710 Engine
Kubota 1.9L 4-cyl diesel
Engine details ...

Kubota L3710 Power
Engine (gross)	38.5 hp 28.7 kW
Engine (net)	36.6 hp 27.3 kW
Gear PTO (claimed)	31.5 hp 23.5 kW
Hydro PTO (claimed)	30 hp 22.4 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Two-post ROPS. Cab optional.

Capacity
Fuel	9.2 gal 34.8 L
Hydraulic system	10.3 gal 39.0 L

Hydraulics
Type	open center
Capacity	10.3 gal 39.0 L
Pump flow	7.8 gpm 29.5 lpm
Steering flow	4.1 gpm 15.5 lpm

Tractor hitch
Rear Type	1
Control	position control and optional draft control
Rear lift (at 24"/610mm)	2,310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Mid PTO	semi-independent (L3710HST)
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	71.1 inches 180 cm
Weight	2955 to 3490 pounds
Front tire	8.3-16
Rear tire	14.9-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40 (ROPS)
	55 (cab)
Battery CCA	582
Battery volts	12

References
1999 Products published by Kubota
L3010/L3410/L3710/L4310 published in 1999, by Kubota
L3010/L3410/L3710/L4310 published in 1999, by Kubota
L3010/L3410/L3710/L4310/L4610 published in 2000, by Kubota

Engine

Engine Detail — 113.3 ci / 1.9 L Diesel

Manufacturer	Kubota E-TVCS
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	113.3 ci 1.9 L
Bore/Stroke	3.15x3.638 inches 80 x 92 mm
Power (net)	36.6 hp 27.3 kW
Power (gross)	38.5 hp 28.7 kW
Rated RPM	2600
Starter volts	12
Coolant capacity	7.88 qts 7.5 L

Transmission

Transmission options
8-speed mechanical shuttle
hydrostatic
8-speed automatic fully synchronized
16-speed creeper

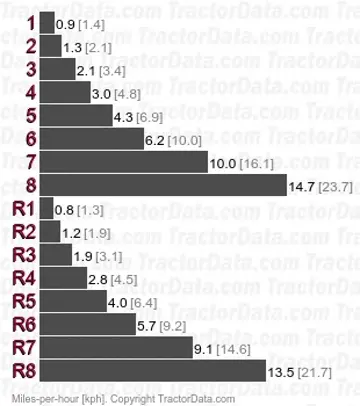

Transmission — FST

Transmission	FST
Type	mechanical shuttle
Gears	8 forward and reverse
Clutch	dry disc
Four synchronized gears in two ranges. Synchronized shuttle shifting.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Transmission — Glide Shift (GST)

Transmission	Glide Shift (GST)
Type	automatic fully synchronized
Gears	8 forward and reverse
Clutch	dry disc
The Glide Shift allows clutchless automatic shifting between gears.

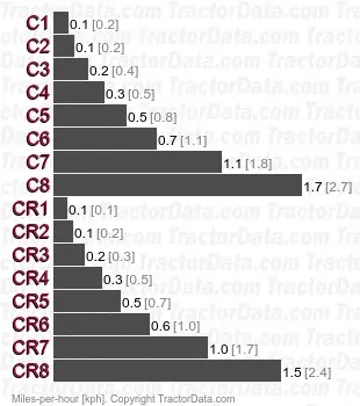

Transmission — 16 forward and reverse creeper

Type	creeper
Gears	16 forward and reverse
Optional creeper range available for the FST or GST transmission.

Dimensions

Kubota L3710 Tires
Ag front	8.3-16
Ag rear	14.9-24

Dimensions
Wheelbase	71.1 inches 180 cm
Length	117.5 inches 298 cm
Width	62.4 inches 158 cm
Height (ROPS)	84.8 inches 215 cm
Height (cab)	86.8 inches 220 cm
Ground clearance	15 inches 38 cm
	13.8 inches (HST) 35 cm
Front tread	45.5 inches 115 cm
Rear tread	46.5/47.2/51.2/57.1/60.8 inches 118/119/130/145/154 cm

Kubota L3710 Weight
4WD gear	2,955 lbs 1340 kg
Hydro	2,990 lbs 1356 kg
Hydro cab	3,490 lbs 1583 kg

Attachments

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe
Advertised attachments for the L3710 included 72-inch rear-mount finish mowers (RCR72-CA) and 60- or 72-inch rotary cutters (L360CA, L372CA), tillers (FL1521C, L60CA), post-hole diggers (BL80A), box scrapers (L7554), and 60-inch front-mount rotary brooms (L2062A).

72" Mower deck
Type	mid-mount Kubota RC72-36A
	3-blade with hydraulic lift
Cutting width	72 inches 182 cm
Weight	476 lbs 215 kg
Overall width	88.6 inches 225 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Kubota BL4690 Backhoe
Backhoe type	Kubota BL4690 Backhoe
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	75.5 inches 191 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2,950 lbs 1338 kg
Dipperstick force	1,740 lbs 789 kg
