Kubota L3830
The Kubota L3830 is a tractor produced by Kubota. It is equipped with a 111.5 ci 1.8 L engine. The rated power output is 37.4 hp 27.9 kW. Transmission: Glide Shift. Operating weight: 463 lbs 210 kg.
Engine Power
37.4 hp
27.9 kW
Fuel & Capacities
10.6 gal
40.1 L
Transmission
Glide Shift
Operating Weight
463 lbs
210 kg
Kubota L3830 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2003 - 2007
L30 SeriesCompact Utility tractor |
|---|---|
2003 - 2007 | |
L30 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
L3830F | 2WD |
L3830DT | 4WD 8 speed |
L3830GST | 4WD 12 speed |
L3830HST | 4WD hydro |
Kubota L3830 Engine | |
|---|---|
Kubota 1.8L 3-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ...  | |
Kubota L3830 Power | |
|---|---|
Engine (gross) | 39 hp
29.1 kW |
Engine (net) | 37.4 hp
27.9 kW |
Gear PTO (claimed) | 32 hp
23.9 kW |
Hydro PTO (claimed) | 30.5 hp
22.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 3 OptOptional |
Pump flow | 8.3 gpm
31.4 lpm |
Total flow | 13.2 gpm
50.0 lpm |
Steering flow | 4.9 gpm
18.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control with optional draft control |
Rear lift (at 24"/610mm) | 2760 lbs
1251 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent OptOptional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 72.6 inches
184 cm |
4WD Wheelbase | 72.4 inches
183 cm |
Weight | 3150 to 3340 pounds |
Front tire | 6.0-16 |
2WD Rear tire | 14.9-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Battery volts | 12 |
References | |
|---|---|
 | |
Grand L 30 Series published in 2004, by Kubota* | |
*Publication contains known errors. |
Engine
Engine Detail — 111.5 ci / 1.8 L Diesel
Manufacturer | Kubota |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 111.5 ci
1.8 L |
Bore/Stroke | 3.425x4.031 inches
87 x 102 mm |
Power (net) | 37.4 hp
27.9 kW |
Power (gross) | 39 hp
29.1 kW |
Fuel system | indirect injection |
Air cleaner | dual dry element |
Rated RPM | 2700 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
hydrostatic | |
8-speed fully synchronized | |
12-speed power shift |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
 | |

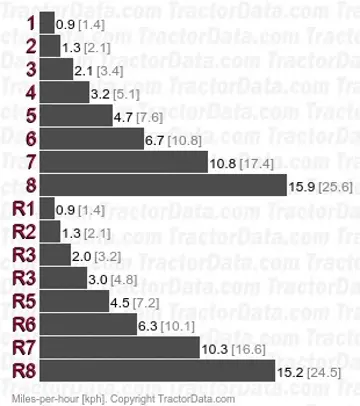

Transmission — FST
Transmission | FST |
Type | fully synchronized |
Gears | 8 forward and reverse |
Clutch | dry disc |
Synchronized transmission with mechanical shuttle. | |
 | |

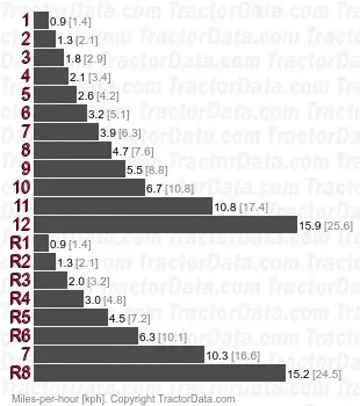

Transmission — Glide Shift
Transmission | Glide Shift |
Type | power shift |
Gears | 12 forward and 8 reverse |
 | |
Dimensions
Kubota L3830 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.0-16. Rear: 14.9-24 |
4WD Standard tires (ag) | Front: 8.3-16. Rear: 14.9-24 |
Dimensions | |
|---|---|
2WD Wheelbase | 72.6 inches
184 cm |
4WD Wheelbase | 72.4 inches
183 cm |
2WD Length | 121.9 inches
309 cm |
4WD Length | 117.5 inches
298 cm |
Width | 66.5 inches
168 cm |
Height (ROPS) | 91.1 inches
231 cm |
2WD Weight | 3150 lbs
1428 kg |
4WD hydro Weight | 3340 lbs
1515 kg |
Ground clearance | 14.8 inches
37 cm |
2WD Front tread | 47.6/51.6/55.5/59.4 inches
120/131/140/150 cm |
4WD Front tread | 45.5 inches
115 cm |
Rear tread | 50.6/56.5/60.2 inches
128/143/152 cm |
Attachments
Attachment overview | |
|---|---|
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
72" Mower deck | |
|---|---|
Type | mid-mount Kubota RC72-38 |
3-blade | |
Cutting width | 72 inches
182 cm |
Weight | 463 lbs
210 kg |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Kubota BL4690B Backhoe | |
|---|---|
Backhoe type | Kubota BL4690B Backhoe |
Transport height | 76.8 inches
195 cm |
Digging depth | 90.2 inches
229 cm |
Reach from pivot | 116.5 inches
295 cm |
Loading height | 75.5 inches
191 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 2950 lbs
1338 kg |
Dipperstick force | 1740 lbs
789 kg |
Kubota BH90 Backhoe | |
|---|---|
Backhoe type | Kubota BH90 Backhoe |
Transport height | 98.9 inches
251 cm |
Digging depth | 108.9 inches
276 cm |
Reach from pivot | 146.5 inches
372 cm |
Loading height | 95.3 inches
242 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 3871 lbs
1755 kg |
Dipperstick force | 2593 lbs
1176 kg |
Photos
Kubota L3830
