Kubota M10570
The Kubota M10570 is a tractor produced by Kubota. It is equipped with a 330.3 ci 5.4 L engine. The listed engine power is Diesel (listed): 105 hp / 78.3 kW. Transmission: 32 forward and 8 reverse. Operating weight: 8179 lbs 3709 kg.
Engine Power
Diesel (listed): 105 hp / 78.3 kW
Fuel & Capacities
31.7 gal
120.0 L
Transmission
32 forward and 8 reverse
Operating Weight
8179 lbs
3709 kg
Overview
 | 1986 - 1990
M70 SeriesUtility tractor
M70 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M10570 Engine | |
|---|---|
Kubota 5.4L 5-cyl diesel | |
Fuel tank | 31.7 gal
120.0 L |
Engine details ...  | |
Kubota M10570 Transmission | |
|---|---|
32-speed | |
Transmission details ...  |
Kubota M10570 Power | |
|---|---|
Engine | 105 hp
78.3 kW |
PTO (claimed) | 99 hp
73.8 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Hydraulics | |
|---|---|
Pump flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | JISII/I |
Rear lift | 7716 lbs
3499 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000/ground |
Engine RPM | 540@2035 |
1000@2388 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 99.6 inches
252 cm |
Weight | 8179 lbs
3709 kg |
Front tire | 12.4-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual M70 (636830-9971-8) |
Engine
Engine Detail — 330.3 ci / 5.4 L Diesel
Manufacturer | Kubota F5400 |
Fuel Type | Diesel |
Configuration | 5-cylinder, liquid-cooled |
Displacement | 330.3 ci
5.4 L |
Bore/Stroke | 4.29x4.57 inches
109 x 116 mm |
Power | 105 hp
78.3 kW |
Rated RPM | 2400 |
Torque | 284 lb-ft
385.1 Nm |
Torque RPM | 1200 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 17.7 qts
16.8 L |
Coolant capacity | 15.2 qts
14.4 L |
Transmission

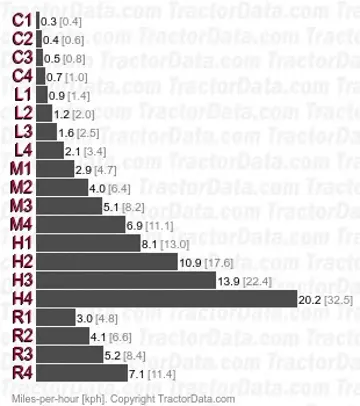

Transmission — 32 forward and 8 reverse
Gears | 32 forward and 8 reverse |
 | |
Dimensions
Kubota M10570 Tires | |
|---|---|
Standard tires (ag) | Front: 12.4-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 99.6 inches
252 cm |
Length | 164 inches
416 cm |
Width | 81.1 inches
205 cm |
Height (ROPS) | 103.9 inches
263 cm |
Height (exhaust) | 100.8 inches
256 cm |
Weight | 8179 lbs
3709 kg |
Ground clearance | 16.1 inches
40 cm |
Front tread | 64.6/68.5 inches
164/173 cm |
Front tread | 62.2 to 73.2 inches
157 to 185 cm |
Rear tread | 58.3 to 85 inches
148 to 215 cm |
Photos
Kubota M10570
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota M10570 based on its 105 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota M10570.
Estimated Continuous Field Runtime: 5.8 hrs
Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).
Estimated 75% Load Fuel Burn~5.5 gal/hr (20.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota M10570 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota M10570.
Converted Equivalents:
Horsepower (HP)105 hp
Kilowatts (kW)78.3 kW
Metric Horsepower (PS / CV)106.5 PS
