Kubota SMZ95

The Kubota SMZ95 is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The rated power output is 93.7 hp 69.9 kW. Transmission: 24 forward and reverse. Operating weight: 6900 lbs 3129 kg.

Overview

	2006 - 2010 Super SynerZ SeriesUtility tractor
2006 - 2010
Super SynerZ Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Variants
SMZ95	utility
SMZ95-HPC	half-track

Kubota SMZ95 Engine
Kubota 3.8L 4-cyl diesel
Fuel tank	27.7 gal 104.8 L
Engine details ...

Kubota SMZ95 Transmission
24-speed
Transmission details ...

Kubota SMZ95 Power
Engine	93.7 hp 69.9 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Cab standard.

Tractor hitch
Rear Type	II
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540
Engine RPM	589@2600
	828@2600
	1170@2600

Dimensions & Tires
Wheelbase	88.6 inches 225 cm
Weight	6900 lbs 3129 kg
Front tire	11.2-24
Rear tire	16.9-34
Full dimensions and tires ...

Engine

Engine Detail — 230 ci / 3.8 L Diesel

Manufacturer	Kubota V3800-T
Configuration	turbocharged diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	230 ci 3.8 L
Bore/Stroke	3.94x4.72 inches 100 x 120 mm
Power	93.7 hp 69.9 kW
Rated RPM	2600
Starter type	electric

Transmission

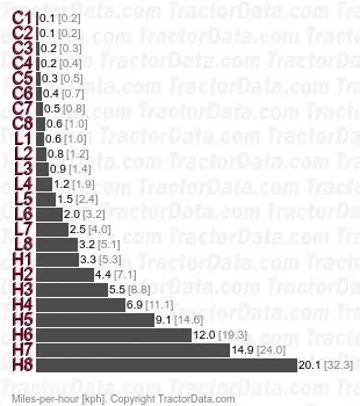

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.

Dimensions

Kubota SMZ95 Tires
Standard tires (ag)	Front: 11.2-24. Rear: 16.9-34

Dimensions
Wheelbase	88.6 inches 225 cm
Length	149.6 inches 379 cm
Width	76.2 inches 193 cm
Height (cab)	101.6 inches 258 cm
Weight	6900 lbs 3129 kg
Ground clearance	18.9 inches 48 cm
Front tread	47.6 to 55.1 inches 120 to 139 cm
Front tread	52.4 to 59.8 inches 133 to 151 cm
Rear tread	51.6 to 78.4 inches 131 to 199 cm
