Kubota M115D
The Kubota M115D is a tractor produced by Kubota. It is equipped with a 355.9 ci 5.8 L engine. The rated power output is 113.3 hp 84.5 kW. Transmission: 24 forward and reverse. Operating weight: 9229 lbs 4186 kg.
Engine Power
113.3 hp
84.5 kW
Fuel & Capacities
50.2 gal
190.0 L
Transmission
24 forward and reverse
Operating Weight
9229 lbs
4186 kg
Kubota M115D Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2005 - 2008
Grandom SeriesUtility tractor |
|---|---|
2005 - 2008 | |
Grandom Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M115D Engine | |
|---|---|
Kubota 5.8L 5-cyl diesel | |
Fuel tank | 50.2 gal
190.0 L |
Engine details ...  | |
Kubota M115D Power | |
|---|---|
Engine | 113.3 hp
84.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 8598 lbs
3900 kg |
11023 lbs*With optional second lift cylinder.
5000 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2035 |
1000@2211 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Weight | 9229 lbs
4186 kg |
Front tire | 14.9-24 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 355.9 ci / 5.8 L Diesel
Manufacturer | Kubota F5802-T |
Configuration | turbocharged diesel, 5-cylinder, liquid-cooled |
Displacement | 355.9 ci
5.8 L |
Bore/Stroke | 4.29x4.92 inches
109 x 125 mm |
Power | 113.3 hp
84.5 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed power shift | |
24-speed creeper |

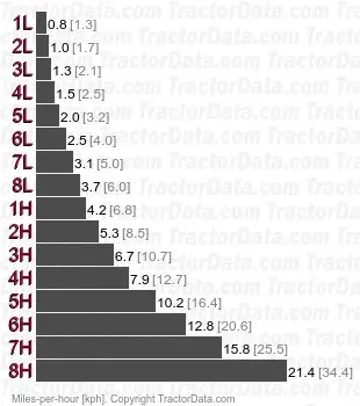

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper adds an additional 8-speed range to the standard transmission. | |
 | |
Dimensions
Kubota M115D Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Length | 171.7 inches
436 cm |
Width | 83.7 inches
212 cm |
Height | 107.5 inches
273 cm |
Weight | 9229 lbs
4186 kg |
Ground clearance | 18.1 inches
45 cm |
Front tread | 64.6/68.5 inches
164/173 cm |
Rear tread | 60.2 to 79.1 inches
152 to 200 cm |
