Kubota M1-115

The Kubota M1-115 is a tractor produced by Kubota. It is equipped with a 355.9 ci 5.8 L engine. The rated power output is 115 hp 85.8 kW. Transmission: 36 forward and reverse. Operating weight: 9105 lbs 4130 kg.

Overview

	1988 - 1998 M1 SeriesUtility tractor
1988 - 1998
M1 Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota M1-115 Engine
Kubota 5.8L 5-cyl diesel
Fuel tank	39.6 gal 149.9 L
Engine details ...

Kubota M1-115 Power
Engine	115 hp 85.8 kW
PTO (claimed)	102.9 hp 76.7 kW

Mechanical
Four-wheel drive
Four-post ROPS. Cab optional.

Tractor hitch
Rear Type	JIS2
Rear lift	8157 lbs 3700 kg

Power Take-off (PTO)
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2016
	1000@2381

Dimensions & Tires
Wheelbase	105.9 inches 268 cm
Weight	9105 lbs 4130 kg
Front tire	14.9-24
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
M1 published in 1991, by Kubota
M1 (33760-9971-2)

Engine

Engine Detail — 355.9 ci / 5.8 L Diesel

Manufacturer	Kubota F5802
Fuel Type	Diesel
Configuration	5-cylinder, liquid-cooled
Displacement	355.9 ci 5.8 L
Bore/Stroke	4.29x4.92 inches 109 x 125 mm
Power	115 hp 85.8 kW
Rated RPM	2400
Torque	311.7 lb-ft 422.7 Nm
Torque RPM	1200
Starter	electric
Starter volts	12

Transmission

Transmission options
24-speed
36-speed creeper

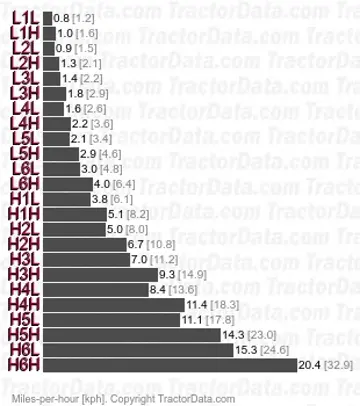

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Six gears in two ranges with two-speed high-low shift.
Transmission
Type	creeper
Gears	36 forward and reverse

Dimensions

Kubota M1-115 Tires
Standard tires (ag)	Front: 14.9-24. Rear: 18.4-38

Dimensions
Wheelbase	105.9 inches 268 cm
Length	171.5 inches 435 cm
Width	82.5 inches 209 cm
Height	106.9 inches 271 cm
Weight	9105 lbs 4130 kg
Clearance (rear axle)	20.7 inches 52 cm
Front tread	64.6 to 68.5 inches 164 to 173 cm
Rear tread	61 to 85 inches 154 to 215 cm

Photos

Kubota M1-115 tractor photo
