CaseIH CS 110
The CaseIH CS 110 is a tractor produced by Caseih. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (net): 103.6 hp / 77.3 kW. Transmission: 40 forward and reverse. Operating weight: 11056 lbs 5015 kg.
Engine Power
Diesel (net): 103.6 hp / 77.3 kW
Fuel & Capacities
58.1 gal
219.9 L
Transmission
40 forward and reverse
Operating Weight
11056 lbs
5015 kg
Overview
 | 1997 - 2003
CS SeriesRow-Crop tractor
CS Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Row-Crop tractor | |
Built in Saint Valentin, Austria | |
Variants | |
|---|---|
9105 | similar Steyr model |
CaseIH CS 110 Engine | |
|---|---|
Sisu 4.4L 4-cyl diesel | |
Fuel tank | 58.1 gal
219.9 L |
79.3 gal*Total capacity with optional 80 liter fuel tank.
300.2 L | |
Engine details ...  | |
CaseIH CS 110 Power | |
|---|---|
Engine (net) | 103.6 hp
77.3 kW |
PTO (claimed) | 92.7 hp
69.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Pressure | 2683 psi
185.0 bar |
Pump flow | 21.1 gpm
79.9 lpm |
30.4 gpmOptOptional
115.1 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2200 |
540E@1680 | |
1000@2200 | |
1000E@1600 | |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 99.6 inches
252 cm |
Weight | 11056 lbs
5015 kg |
Front tire | 540/65R24 |
Rear tire | 600/65R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |

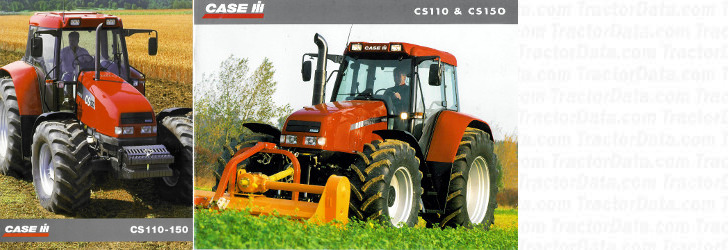

CS110-CS150 published in 1998, by CaseIH | |
CS110 & CS150 published in 2000, by CaseIH |
Engine
Engine Detail — 268.5 ci / 4.4 L Diesel
Manufacturer | Sisu 420.85 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 268.5 ci
4.4 L |
Bore/Stroke | 4.25x4.72 inches
108 x 120 mm |
Rated Power (net) | 103.6 hp
77.3 kW |
Maximum Power (net) | 108.5 hp
80.9 kW |
Rated RPM | 2300 |
Operating RPM | 1850-2300 |
Torque | 314.9 lb-ft
427.0 Nm |
Torque RPM | 1500 |
Oil capacity | 14.8 qts
14.0 L |
Oil change | 250 h |
Transmission
Transmission options | |
|---|---|
24-speed four-speed power shift | |
40-speed creeper |

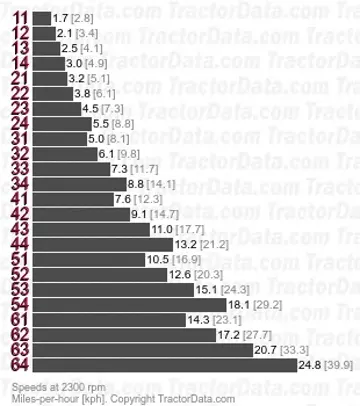

Transmission — 24 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 24 forward and reverse |
Four power shift gears in six synchronized ranges with power shuttle. | |
With 18.4R38 rear tires. | |
 | |
Transmission — 40 forward and reverse creeper
Type | creeper |
Gears | 40 forward and reverse |
Optional creeper adds an additional four ranges to the standard transmission. | |
Dimensions
CaseIH CS 110 Tires | |
|---|---|
Standard tires (ag) | Front: 540/65R24. Rear: 600/65R38 |
Dimensions | |
|---|---|
Wheelbase | 99.6 inches
252 cm |
Length | 179.1 inches
454 cm |
Width | 94.1 inches
239 cm |
Height | 114.2 inches
290 cm |
Weight | 11056 lbs
5015 kg |
Max weight | 18739 lbs
8500 kg |
Ground clearance | 20.5 inches
52 cm |
Photos
CaseIH CS 110 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih CS 110 based on its 103.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih CS 110.
Estimated Continuous Field Runtime: 10.8 hrs
Approximately 10.8 hours of continuous field operation at ~75% rated power on a full tank (58.1 gal / 219.9 L).
Estimated 75% Load Fuel Burn~5.4 gal/hr (20.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih CS 110 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih CS 110.
Converted Equivalents:
Horsepower (HP)103.6 hp
Kilowatts (kW)77.3 kW
Metric Horsepower (PS / CV)105 PS
Direct Competitor Comparison
Compare CaseIH CS 110 against same-era industry alternatives in the same horsepower class.
Current Model
Caseih
CaseIH CS 110
Engine Power:Diesel (net): 103.6 hp / 77.3 kW
★ Baseline Reference
