Kubota M7950DTM
The Kubota M7950DTM is a tractor produced by Kubota. It is equipped with a 261.9 ci 4.3 L engine. The rated power output is 81 hp 60.4 kW. Transmission: 16 forward and 4 reverse. Operating weight: 8,501 lbs 3856 kg.
Engine Power
81 hp
60.4 kW
Fuel & Capacities
26.4 gal
99.9 L
Transmission
16 forward and 4 reverse
Operating Weight
8,501 lbs
3856 kg
Kubota M7950DTM Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1986 - 1994
High-Clearance tractor |
|---|---|
1986 - 1994 | |
High-Clearance tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
High-Clearance tractor | |
Built in Japan | |
The Kubota M7950DTM was the four-wheel drive high-crop ("Mudder") variant of the M7950 series of tractors. | |
Variants | |
|---|---|
M7950F | 2WD |
M7950DT | 4WD |
M7950FW | wide-tread |
M7950DTM | mudder |
M7950HC | 2WD high-crop |
Kubota M7950DTM Engine | |
|---|---|
Kubota 4.3L 4-cyl diesel | |
Engine details ...  |
Kubota M7950DTM Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Kubota M7950DTM Power | |
|---|---|
Engine (net) | 81 hp
60.4 kW |
PTO (claimed) | 75.44 hp
56.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Four-post ROPS canopy. Cab optional. | |
Capacity | |
|---|---|
Fuel | 26.4 gal
99.9 L |
Hydraulic system | 13.2 gal
50.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 13.2 gal
50.0 L |
Pressure | 2630 psi
181.3 bar |
Valves | 1 or 2 |
Total flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 4,848 lbs
2199 kg |
Rear lift (at 24"/610mm) | 4,475 lbs
2029 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 89 inches
226 cm |
Weight | 8,501 lbs
3856 kg |
Front tire | 12.4-32 |
Rear tire | 13.6-46 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 65 (with cab) |
Battery volts | 12 |
Battery AH | 300 |
Engine
Engine Detail — 261.9 ci / 4.3 L Diesel
Manufacturer | Kubota V4300 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 261.9 ci
4.3 L |
Bore/Stroke | 4.29x4.53 inches
109 x 115 mm |
Power (net) | 81 hp
60.4 kW |
Air cleaner | dry element |
Compression | 17:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 13.9 qts
13.2 L |
Coolant capacity | 14.4 qts
13.6 L |

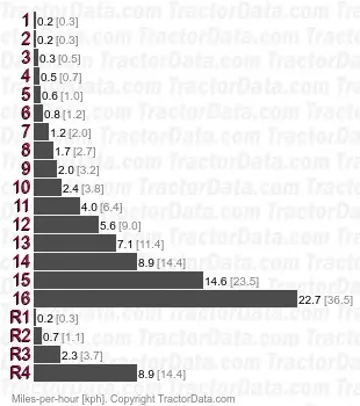

Transmission
Transmission — 16 forward and 4 reverse
Gears | 16 forward and 4 reverse |
 | |
Dimensions
Kubota M7950DTM Tires | |
|---|---|
Ag front | 12.4-32 |
Ag rear | 13.6-46 |
Dimensions | |
|---|---|
Wheelbase | 89 inches
226 cm |
Height (steering wheel) | 79.25 inches
201 cm |
Weight | 8,501 lbs
3856 kg |
Ground clearance | 27 inches
68 cm |
Front tread | 72 to 80 inches
182 to 203 cm |
Rear tread | 76 to 80 inches
193 to 203 cm |
