Kubota M7-154
The Kubota M7-154 is a tractor produced by Kubota. It is equipped with a 374 ci 6.1 L engine. The rated power output is 148 hp 110.4 kW. Transmission: KVT. Operating weight: 14546 lbs 6598 kg.
Engine Power
148 hp
110.4 kW
Fuel & Capacities
87 gal
329.3 L
Transmission
KVT
Operating Weight
14546 lbs
6598 kg
Kubota M7-154 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2023 -
M7-4 SeriesRow-Crop tractor |
|---|---|
2023 - | |
M7-4 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Row-Crop tractor | |
Kubota M7-154 Engine | |
|---|---|
Kubota 6.1L 4-cyl diesel | |
Fuel tank | 87 gal
329.3 L |
Exhaust fluid (DEF) | 10 gal
37.9 L |
Engine details ...  | |
Kubota M7-154 Power | |
|---|---|
Engine (max) | 148 hp
110.4 kW |
PTO (claimed) | 120 hp
89.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. Available mechanical or pneumatic cab suspension. |
Hydraulics | |
|---|---|
Type | closed center load-sensing |
Rear valves | 4 or 5 |
Pump flow | 29 gpm
109.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/IIIN |
Control | electronic lower-link draft sensing |
Rear lift (at ends) | 20723 lbs
9399 kg |
Rear lift (at 24"/610mm) | 11797 lbs
5351 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 107 inches
271 cm |
Weight | 14546 lbs
6598 kg |
Front tire | 14.9R28 |
Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
Battery CCA | 1400 |
Battery volts | 12 |
Battery AH | 174 |
References | |
|---|---|
 | |
M7-4 Series published in 2022, by Kubota |
Engine

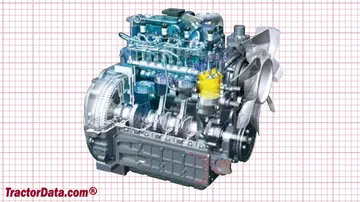

Engine Detail — 374 ci / 6.1 L Diesel
Manufacturer | Kubota V6108 |
Configuration | turbocharged intercooled diesel, 4-cylinder, liquid-cooled inline |
Displacement | 374 ci
6.1 L |
Bore/Stroke | 4.65x5.51 inches
118 x 140 mm |
Emissions | Tier IV |
Maximum Power (gross) | 148 hp
110.4 kW |
Fuel system | direct injection |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 12 |
Kubota M7-154 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
30-speed six-speed power shift | |
continuously-variable transmission | |
54-speed creeper |
Transmission — 30 forward and 15 reverse six-speed power shift
Type | six-speed power shift |
Gears | 30 forward and 15 reverse |
Clutch | hydraulic wet disc |
Six power shift gears in five synchronized ranges with power shuttle. | |
Transmission — KVT
Transmission | KVT |
Type | continuously-variable transmission |
Gears | infinite forward and reverse |
Transmission — 54 forward and 27 reverse creeper
Type | creeper |
Gears | 54 forward and 27 reverse |
Clutch | hydraulic wet disc |
Optional additional creeper range transmission for the power shift. | |
Dimensions
Kubota M7-154 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9R28. Rear: 18.4R38 |
Dimensions | |
|---|---|
Wheelbase | 107 inches
271 cm |
Length | 118 inches
299 cm |
Width | 110 inches
279 cm |
Height | 121.7 inches
309 cm |
Shipping weight | 14546 lbs
6598 kg |
Front axle | flange inch diameter
0 mm |
Front axle | Bar: 110 inch length
2794 mm |
