Kubota M7-174

The Kubota M7-174 is a tractor produced by Kubota. It is equipped with a 374 ci 6.1 L engine. Transmission: KVT. Operating weight: 14546 lbs 6598 kg.

Fuel & Capacities
87 gal 329.3 L
Transmission
KVT
Operating Weight
14546 lbs 6598 kg

Overview

Kubota M7-174 tractor photo
2023 - M7-4 SeriesRow-Crop tractor
2023 -
M7-4 Series
Row-Crop tractor
Production
Manufacturer
Kubota
Row-Crop tractor
Kubota M7-174 Engine
Kubota 6.1L 4-cyl diesel
Fuel tank
87 gal 329.3 L
Exhaust fluid (DEF)
10 gal 37.9 L
Engine details ...
Kubota M7-174 Power
Engine (max)
168 hp 125.3 kW
PTO (claimed)
140 hp 104.4 kW
Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning. Available mechanical or pneumatic cab suspension.
Hydraulics
Type
closed center load-sensing
Rear valves
4 or 5
Pump flow
29 gpm 109.8 lpm
Tractor hitch
Rear Type
III/IIIN
Control
electronic lower-link draft sensing
Rear lift (at ends)
20723 lbs 9399 kg
Rear lift (at 24"/610mm)
11797 lbs 5351 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Front PTO Type
1000
Dimensions & Tires
Wheelbase
107 inches 271 cm
Weight
14546 lbs 6598 kg
Front tire
14.9R28
Rear tire
18.4R38
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
200
Battery CCA
1400
Battery volts
12
Battery AH
174
References
M7-174 references literature
M7-4 Series published in 2022, by Kubota

Engine

Engine Detail — 374 ci / 6.1 L Diesel

Manufacturer
Kubota V6108
Configuration
turbocharged intercooled diesel, 4-cylinder, liquid-cooled inline
Displacement
374 ci 6.1 L
Bore/Stroke
4.65x5.51 inches 118 x 140 mm
Emissions
Tier IV
Maximum Power (gross)
168 hp 125.3 kW
Fuel system
direct injection
Rated RPM
2100
Starter
electric
Starter volts
12
Kubota M7-174 Engine

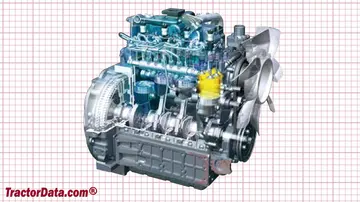

Kubota M7-174 engine image

Transmission

Transmission options
30-speed six-speed power shift
continuously-variable transmission
54-speed creeper

Transmission — 30 forward and 15 reverse six-speed power shift

Type
six-speed power shift
Gears
30 forward and 15 reverse
Clutch
hydraulic wet disc
Six power shift gears in five synchronized ranges with power shuttle.

Transmission — KVT

Transmission
KVT
Type
continuously-variable transmission
Gears
infinite forward and reverse

Transmission — 54 forward and 27 reverse creeper

Type
creeper
Gears
54 forward and 27 reverse
Clutch
hydraulic wet disc
Optional additional creeper range transmission for the power shift.

Dimensions

Kubota M7-174 Tires
Standard tires (ag)
Front: 14.9R28. Rear: 18.4R38
Dimensions
Wheelbase
107 inches 271 cm
Length
118 inches 299 cm
Width
110 inches 279 cm
Height
121.7 inches 309 cm
Shipping weight
14546 lbs 6598 kg
Front axle
flange inch diameter 0 mm
Front axle
Bar: 110 inch length 2794 mm

Photos

Kubota M7-174 tractor photo

Kubota M7-174 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota M7-174.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
