Kubota M9540
The Kubota M9540 is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The listed engine power is Diesel (net): 95 hp / 70.8 kW. Transmission: Hydraulic-Shuttle. Operating weight: 5095 to 6175 pounds.
Engine Power
Diesel (net): 95 hp / 70.8 kW
Fuel & Capacities
23.8 gal
90.1 L
Transmission
Hydraulic-Shuttle
Operating Weight
5095 to 6175 pounds
Overview
 | 2006 - 2013
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Original price | $32,160 (2011) |
Variants | |
|---|---|
M9540F | 2WD ROPS sync-shuttle |
M9540FC | 2WD cab sync-shuttle |
M9540DT | 4WD ROPS sync-shuttle |
M9540HD | 4WD ROPS hyd-shuttle |
M9540HD12 | 4WD ROPS 12-speed |
M9540DTC | 4WD cab sync-shuttle |
M9540HDC | 4WD cab hyd-shuttle |
M9540HDC12 | 4WD cab 12-speed |
M9540HDC24 | 4WD cab 24-speed |
M9540HFL | 2WD low-profile |
M9450HDL | 4WD low-profile |
Kubota M9540 Engine | |
|---|---|
Kubota 3.8L 4-cyl diesel | |
Engine details ...  |
Kubota M9540 Power | |
|---|---|
Engine (net) | 95 hp
70.8 kW |
PTO (claimed) | 84 hp
62.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Hydraulic wet disc brakes | |
Two-post foldable ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioning | |
Capacity | |
|---|---|
ROPS Fuel | 23.8 gal
90.1 L |
Cab Fuel | 29.1 gal
110.1 L |
Hydraulic system | 14.25 gal
53.9 L |
Front axle | 10 qts
9.5 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 14.25 gal
53.9 L |
Valves | 1 to 3 |
Pump flow | 17 gpm
64.3 lpm |
Total flow | 23.1 gpm
87.4 lpm |
Steering flow | 6.1 gpm
23.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 5,510 lbs
2499 kg |
8,600 lbsOptOptional
3900 kg | |
Rear lift (at 24"/610mm) | 4,630 lbs
2100 kg |
7,275 lbsOptOptional
3299 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
540/1000 OptOptional | |
Engine RPM | 540@2205 |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.6 inches
225 cm |
Weight | 5095 to 6175 pounds |
Front tire | 7.50-18 |
2WD Rear tire | 18.4-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
ROPS Charging amps | 45 |
Cab Charging amps | 60 |
80 OptOptional | |
Battery CCA | 900 |
Battery volts | 12 |

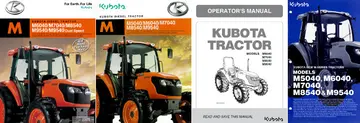

References | |
|---|---|
 | |
M6040/M7040/M8540/M9540 published in 2018, by Kubota | |
M5040/M6040/M7040/M8540/M9540 published in 2005, by Kubota | |
M6040/M7040/M8540/M9540 (3C043-9971-2) published in 2006 | |
New Product Guide M-Series Tractors published in 2005, by Kubota |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Kubota V3800-DI-T |
Configuration | turbocharged diesel, 4-cylinder 16-valve, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Emissions | Tier III |
Emission control | EGR |
Power (net) | 95 hp
70.8 kW |
Air cleaner | dual element dry |
Rated RPM | 2600 |
Starter volts | 12 |
Oil capacity | 11.3 qts
10.7 L |
Coolant capacity | 9.5 qts
9.0 L |
Transmission
Transmission options | |
|---|---|
8-speed partially synchronized | |
8-speed power shuttle | |
12-speed power shuttle | |
24-speed partial power shift |
Transmission — Synchro-Shuttle
Transmission | Synchro-Shuttle |
Type | partially synchronized |
Gears | 8 forward and reverse |
Clutch | dry plate |
Oil capacity | 57 qts
53.9 L |
Four gears with high and low ranges. Gears and forward-reverse shuttle shifting are synchronized. | |
Transmission — Hydraulic-Shuttle
Transmission | Hydraulic-Shuttle |
Type | power shuttle |
Gears | 8 forward and reverse |
Clutch | wet discs |
Oil capacity | 57 qts
53.9 L |
Four gears with high and low ranges. Clutchless power shuttle shifting between forward and reverse. Gears (1-4) are synchronized. | |
Transmission — Hydraulic-Shuttle
Transmission | Hydraulic-Shuttle |
Type | power shuttle |
Gears | 12 forward and reverse |
Clutch | wet discs |
Oil capacity | 57 qts
53.9 L |
Six gears with high and low ranges. Clutchless power shuttle shifting between forward and reverse. Gears (1-6) are synchronized. | |
Transmission — Hydraulic-Shuttle
Transmission | Hydraulic-Shuttle |
Type | partial power shift |
Gears | 24 forward and reverse |
Clutch | wet discs |
Oil capacity | 57 qts
53.9 L |
The 24-speed transmission adds Dual Speed to the 12-speed hydraulic shuttle. Push-button power shift between the Dual Speed high and low. Clutchless power shuttle shifting between forward and reverse. The gears (1-6) are synchronized for on-the-move shifting with the clutch. | |
Dimensions
Kubota M9540 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-18. Rear: 18.4-30 |
4WD Standard tires (ag) | Front: 12.4-24. Rear: 18.4-30 |
2WD Optional tires (ag) | Front: 7.50-18. Rear: 18.4R30 |
2WD Optional tires (ag) | Front: 9.5L-15. Rear: 18.4-26 |
2WD Optional tires (ag) | Front: 10.00-16. Rear: 16.9-34 |
2WD Optional tires (ag) | Front: 10.00-16. Rear: 18.4-30 |
2WD Optional tires (ag) | Front: 10.00-16. Rear: 18.4R30 |
4WD Optional tires (ag) | Front: 9.5-22. Rear: 16.9-24 |
4WD Optional tires (ag) | Front: 11.2-24. Rear: 18.4-28 |
4WD Optional tires (ag) | Front: 12.4R24. Rear: 18.4R30 |
2WD Lawn/turf rear | 18.4-26 |
4WD Industrial front | 12.5/80-18 |
4WD Industrial rear | 19.5L-24 |
Dimensions | |
|---|---|
Wheelbase | 88.6 inches
225 cm |
2WD Length | 153 inches
388 cm |
4WD Length | 148 inches
375 cm |
Width | 78 inches
198 cm |
Height (ROPS) | 98 inches
248 cm |
Height (cab) | 102 inches
259 cm |
2WD Clearance (front axle) | 20.4 inches
51 cm |
4WD Clearance (front axle) | 19.7 inches
50 cm |
2WD Front tread | 56.7 to 80.3 inches
144 to 203 cm |
4WD Front tread | 59.8 to 63.8 inches
151 to 162 cm |
Rear tread | 59.8 to 75.6 inches
151 to 192 cm |
Kubota M9540 Weight | |
|---|---|
5,095 lbs (2WD ROPS)
2311 kg | |
5,510 lbs (4WD ROPS)
2499 kg | |
5,755 lbs (2WD cab)
2610 kg | |
6,175 lbs (4WD cab)
2800 kg | |
Attachments
Attachment overview | |
|---|---|
Kubota LA1353 Height Position loader | |
Kubota LA1353 Power Position loader | |
Backhoe |
Kubota M4011 Backhoe | |
|---|---|
Backhoe type | Kubota M4011 Backhoe |
Photos
Kubota M9540
Kubota M9540
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota M9540 based on its 95 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota M9540.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (23.8 gal / 90.1 L).
Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota M9540 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota M9540.
Converted Equivalents:
Horsepower (HP)95 hp
Kilowatts (kW)70.8 kW
Metric Horsepower (PS / CV)96.3 PS
