Kubota M9570
The Kubota M9570 is a tractor produced by Kubota. It is equipped with a 261.9 ci 4.3 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 16 forward and 4 reverse. Operating weight: 6878 to 7584 pounds.
Engine Power
Diesel (listed): 95 hp / 70.8 kW
Fuel & Capacities
31.7 gal
120.0 L
Transmission
16 forward and 4 reverse
Operating Weight
6878 to 7584 pounds
Overview
 | 1984 - 1988
M70 SeriesUtility tractor
M70 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M9570 Engine | |
|---|---|
Kubota 4.3L 4-cyl diesel | |
Fuel tank | 31.7 gal
120.0 L |
Engine details ...  | |
Kubota M9570 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Kubota M9570 Power | |
|---|---|
Engine | 95 hp
70.8 kW |
PTO (claimed) | 87 hp
64.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive |
Hydraulics | |
|---|---|
Pump flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | JISII/I |
Rear lift | 7716 lbs
3499 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/850/ground (1.375) |
Engine RPM | 540@2035 |
850@2391 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 95.9 inches
243 cm |
4WD Wheelbase | 97.2 inches
246 cm |
Weight | 6878 to 7584 pounds |
Front tire | 7.50-20 |
2WD Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual M70 (636830-9971-8) |
Engine
Engine Detail — 261.9 ci / 4.3 L Diesel
Manufacturer | Kubota V4300 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 261.9 ci
4.3 L |
Bore/Stroke | 4.29x4.53 inches
109 x 115 mm |
Power | 95 hp
70.8 kW |
Rated RPM | 2400 |
Torque | 248 lb-ft
336.3 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 16.4 qts
15.5 L |
Coolant capacity | 14.9 qts
14.1 L |

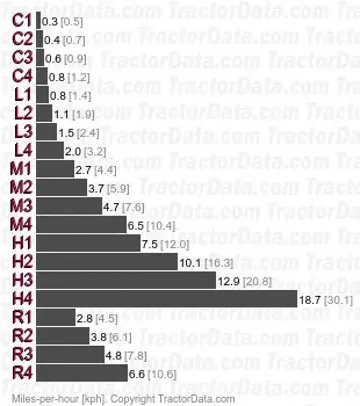

Transmission
Transmission — 16 forward and 4 reverse
Gears | 16 forward and 4 reverse |
 | |
Dimensions
Kubota M9570 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 16.9-34 |
4WD Standard tires (ag) | Front: 11.2-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 95.9 inches
243 cm |
4WD Wheelbase | 97.2 inches
246 cm |
2WD Length | 158.7 inches
403 cm |
4WD Length | 160.2 inches
406 cm |
2WD Width | 71.9 inches
182 cm |
4WD Width | 75.4 inches
191 cm |
2WD Weight | 6878 lbs
3119 kg |
4WD Weight | 7584 lbs
3440 kg |
2WD Ground clearance | 17.1 inches
43 cm |
4WD Ground clearance | 15.4 inches
39 cm |
2WD Front tread | 56.7 to 80.3 inches
144 to 203 cm |
4WD Front tread | 60.6/64.6 inches
153/164 cm |
Rear tread | 57.1 to 81.1 inches
145 to 205 cm |
Kubota M9570 Height | |
|---|---|
2WD ROPS | 103.9 inches
263 cm |
4WD ROPS | 102.8 inches
261 cm |
2WD Exhaust | 102.8 inches
261 cm |
4WD Exhaust | 101.6 inches
258 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota M9570 based on its 95 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota M9570.
Estimated Continuous Field Runtime: 6.4 hrs
Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).
Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota M9570 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota M9570.
Converted Equivalents:
Horsepower (HP)95 hp
Kilowatts (kW)70.8 kW
Metric Horsepower (PS / CV)96.3 PS
Direct Competitor Comparison
Compare Kubota M9570 against same-era industry alternatives in the same horsepower class.
Current Model
Kubota
Kubota M9570
Engine Power:Diesel (listed): 95 hp / 70.8 kW
★ Baseline Reference
