Kubota MD107
The Kubota MD107 is a tractor produced by Kubota. It is equipped with a 355.9 ci 5.8 L engine. The rated power output is 105.5 hp 78.7 kW. Transmission: 16 forward and reverse. Operating weight: 8510 lbs 3860 kg.
Engine Power
105.5 hp
78.7 kW
Fuel & Capacities
39.6 gal
149.9 L
Transmission
16 forward and reverse
Operating Weight
8510 lbs
3860 kg
Kubota MD107 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 2001
MD SeriesUtility tractor |
|---|---|
1995 - 2001 | |
MD Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota MD107 Engine | |
|---|---|
Kubota 5.8L 5-cyl diesel | |
Fuel tank | 39.6 gal
149.9 L |
Engine details ...  | |
Kubota MD107 Power | |
|---|---|
Engine | 105.5 hp
78.7 kW |
PTO (claimed) | 98 hp
73.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Pump flow | 17.4 gpm
65.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 5611 lbs
2545 kg |
6856 lbs*With optional lift cylinder.
3109 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2035 |
1000@2211 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 101 inches
256 cm |
Weight | 8510 lbs
3860 kg |
Front tire | 13.6-24 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 355.9 ci / 5.8 L Diesel
Manufacturer | Kubota F5802 |
Fuel Type | Diesel |
Configuration | 5-cylinder, liquid-cooled |
Displacement | 355.9 ci
5.8 L |
Bore/Stroke | 4.29x4.92 inches
109 x 125 mm |
Power | 105.5 hp
78.7 kW |
Rated RPM | 2400 |
Torque | 288.6 lb-ft
391.3 Nm |
Torque RPM | 1300 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 22 qts
20.8 L |
Coolant capacity | 15.2 qts
14.4 L |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed creeper | |
16-speed partial power shift |

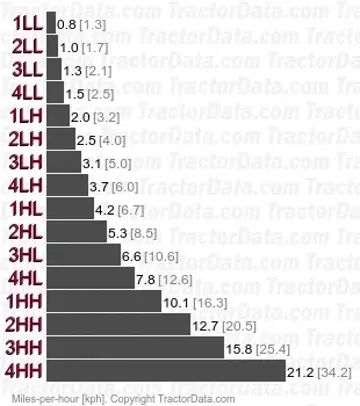

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges (low/high) with additional two-range shift. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper range added to basic transmission. | |
 | |
Transmission — 16 forward and reverse partial power shift
Type | partial power shift |
Gears | 16 forward and reverse |
Eight gears in two ranges. Optional creeper range available. | |
Dimensions
Kubota MD107 Tires | |
|---|---|
Standard tires (ag) | Front: 13.6-24. Rear: 16.9-38 |
Dimensions | |
|---|---|
Wheelbase | 101 inches
256 cm |
Length | 165.8 inches
421 cm |
Width | 80.3 inches
203 cm |
Height | 106.1 inches
269 cm |
Weight | 8510 lbs
3860 kg |
Ground clearance | 19.7 inches
50 cm |
Front tread | 64.6/68.5 inches
164/173 cm |
Rear tread | 59.5 to 78.4 inches
151 to 199 cm |
