Kubota MD117
The Kubota MD117 is a tractor produced by Kubota. It is equipped with a 355.9 ci 5.8 L engine. The rated power output is 113.4 hp 84.6 kW. Transmission: 16 forward and reverse. Operating weight: 8818 lbs 3999 kg.
Engine Power
113.4 hp
84.6 kW
Fuel & Capacities
39.6 gal
149.9 L
Transmission
16 forward and reverse
Operating Weight
8818 lbs
3999 kg
Kubota MD117 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 2001
MD SeriesUtility tractor |
|---|---|
1995 - 2001 | |
MD Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota MD117 Engine | |
|---|---|
Kubota 5.8L 5-cyl diesel | |
Fuel tank | 39.6 gal
149.9 L |
Engine details ...  | |
Kubota MD117 Power | |
|---|---|
Engine | 113.4 hp
84.6 kW |
PTO (claimed) | 103.1 hp
76.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Pump flow | 17.4 gpm
65.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 5611 lbs
2545 kg |
6856 lbs*With optional lift cylinder.
3109 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2035 |
1000@2211 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Weight | 8818 lbs
3999 kg |
Front tire | 14.9-24 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 355.9 ci / 5.8 L Diesel
Manufacturer | Kubota F5802 |
Fuel Type | Diesel |
Configuration | 5-cylinder, liquid-cooled |
Displacement | 355.9 ci
5.8 L |
Bore/Stroke | 4.29x4.92 inches
109 x 125 mm |
Power | 113.4 hp
84.6 kW |
Rated RPM | 2400 |
Torque | 311.7 lb-ft
422.7 Nm |
Torque RPM | 1200 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 22 qts
20.8 L |
Coolant capacity | 15.7 qts
14.9 L |

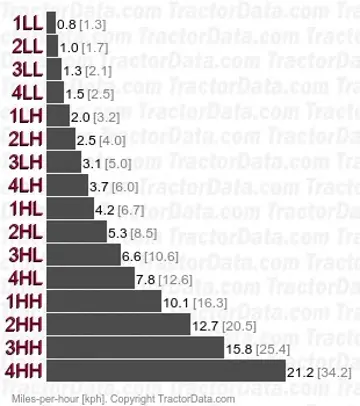

Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed creeper | |
16-speed partial power shift |
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges (low/high) with additional two-range shift. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper range added to basic transmission. | |
 | |
Transmission — 16 forward and reverse partial power shift
Type | partial power shift |
Gears | 16 forward and reverse |
Eight gears in two ranges. Optional creeper range available. | |
Dimensions
Kubota MD117 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Length | 171.9 inches
436 cm |
Width | 82.7 inches
210 cm |
Height | 107.3 inches
272 cm |
Weight | 8818 lbs
3999 kg |
Ground clearance | 20.5 inches
52 cm |
Front tread | 64.6/68.5 inches
164/173 cm |
Rear tread | 59.5 to 78.4 inches
151 to 199 cm |
