Kubota MD97
The Kubota MD97 is a tractor produced by Kubota. It is equipped with a 284.7 ci 4.7 L engine. The listed engine power is Diesel (listed): 95.7 hp / 71.4 kW. Transmission: 16 forward and reverse. Operating weight: 7694 to 8091 pounds.
Engine Power
Diesel (listed): 95.7 hp / 71.4 kW
Fuel & Capacities
39.6 gal
149.9 L
Transmission
16 forward and reverse
Operating Weight
7694 to 8091 pounds
Overview
 | 1995 - 2001
MD SeriesUtility tractor
MD Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota MD97 Engine | |
|---|---|
Kubota 4.7L 4-cyl diesel | |
Fuel tank | 39.6 gal
149.9 L |
Engine details ...  | |
Kubota MD97 Power | |
|---|---|
Engine | 95.7 hp
71.4 kW |
PTO (claimed) | 91.5 hp
68.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standard with air-conditioning. Optional ROPS. |
Hydraulics | |
|---|---|
Pump flow | 15.85 gpm
60.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 4486 lbs
2034 kg |
5699 lbs*With optional lift cylinder.
2585 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2035 |
1000@2211 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 96.3 inches
244 cm |
Weight | 7694 to 8091 pounds |
Front tire | 11.2-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 284.7 ci / 4.7 L Diesel
Manufacturer | Kubota V4702 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 284.7 ci
4.7 L |
Bore/Stroke | 4.29x4.92 inches
109 x 125 mm |
Power | 95.7 hp
71.4 kW |
Rated RPM | 2400 |
Torque | 264 lb-ft
358.0 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 17.2 qts
16.3 L |
Coolant capacity | 15.85 qts
15.0 L |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed creeper | |
16-speed partial power shift |

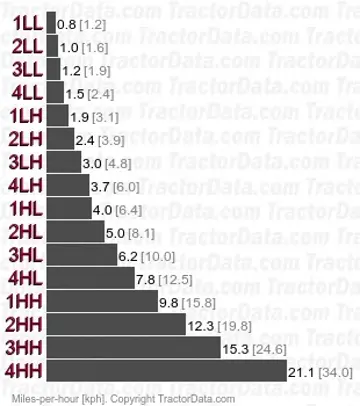

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges (low/high) with additional two-range shift. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper range added to basic transmission. | |
 | |
Transmission — 16 forward and reverse partial power shift
Type | partial power shift |
Gears | 16 forward and reverse |
Eight gears in two ranges. Optional creeper range available. | |
Dimensions
Kubota MD97 Tires | |
|---|---|
Standard tires (ag) | Front: 11.2-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
Wheelbase | 96.3 inches
244 cm |
Length | 159.5 inches
405 cm |
Width | 78 inches
198 cm |
Height | 104.3 inches
264 cm |
ROPS Weight | 7694 lbs
3489 kg |
Cab Weight | 8091 lbs
3670 kg |
Ground clearance | 17.9 inches
45 cm |
Front tread | 52 to 59.5 inches
132 to 151 cm |
ROPS Rear tread | 54.3 to 78.4 inches
137 to 199 cm |
Cab Rear tread | 59.5 to 78.4 inches
151 to 199 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota MD97 based on its 95.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota MD97.
Estimated Continuous Field Runtime: 8 hrs
Approximately 8 hours of continuous field operation at ~75% rated power on a full tank (39.6 gal / 149.9 L).
Estimated 75% Load Fuel Burn~5 gal/hr (18.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota MD97 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota MD97.
Converted Equivalents:
Horsepower (HP)95.7 hp
Kilowatts (kW)71.4 kW
Metric Horsepower (PS / CV)97 PS
Direct Competitor Comparison
Compare Kubota MD97 against same-era industry alternatives in the same horsepower class.
Current Model
Kubota
Kubota MD97
Engine Power:Diesel (listed): 95.7 hp / 71.4 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 844-S
Engine Power:87
Production Years:1975 - 1989
