Kubota MZ505
The Kubota MZ505 is a tractor produced by Kubota. It is equipped with a 220.9 ci 3.6 L engine. The rated power output is 49.3 hp 36.8 kW. Transmission: 24 forward and reverse. Operating weight: 5225 lbs 2370 kg.
Engine Power
49.3 hp
36.8 kW
Fuel & Capacities
17.2 gal
65.1 L
Transmission
24 forward and reverse
Operating Weight
5225 lbs
2370 kg
Kubota MZ505 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2010 - 2014
SynerZ SeriesUtility tractor |
|---|---|
2010 - 2014 | |
SynerZ Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota MZ505 Engine | |
|---|---|
Kubota 3.6L 4-cyl diesel | |
Fuel tank | 17.2 gal
65.1 L |
Engine details ...  | |
Kubota MZ505 Transmission | |
|---|---|
24-speed | |
Transmission details ...  |
Kubota MZ505 Power | |
|---|---|
Engine | 49.3 hp
36.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Cab standard. |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540 |
Engine RPM | 544@2400 |
764@2400 | |
1080@2400 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 80.7 inches
204 cm |
Weight | 5225 lbs
2370 kg |
Front tire | 8-18 |
Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 220.9 ci / 3.6 L Diesel
Manufacturer | Kubota V3600IDI |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 220.9 ci
3.6 L |
Bore/Stroke | 3.86x4.72 inches
98 x 120 mm |
Power | 49.3 hp
36.8 kW |
Rated RPM | 2400 |
Starter type | electric |
Transmission
Transmission — 24 forward and reverse
Gears | 24 forward and reverse |
Clutch | electro-hydraulic wet disc |

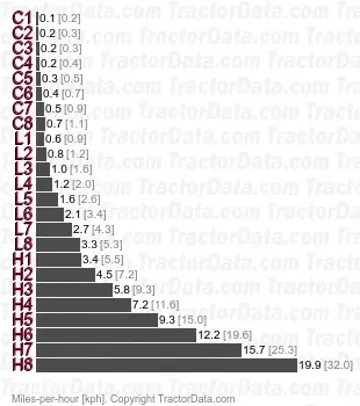

Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift. | |
 | |
Dimensions
Kubota MZ505 Tires | |
|---|---|
Standard tires (ag) | Front: 8-18. Rear: 13.6-28 |
Dimensions | |
|---|---|
Wheelbase | 80.7 inches
204 cm |
Length | 142.7 inches
362 cm |
Width | 61.6 inches
156 cm |
Height (cab) | 95.1 inches
241 cm |
Weight | 5225 lbs
2370 kg |
Ground clearance | 15 inches
38 cm |
Front tread | 51.2 inches
130 cm |
Rear tread | 48 to 63.4 inches
121 to 161 cm |
Photos
Kubota MZ505 tractor photo
