Kubota L3350

The Kubota L3350 is a tractor produced by Kubota. It is equipped with a 113.6 ci 1.9 L engine. The rated power output is 40 hp 29.8 kW. Transmission: 8 forward and reverse. Operating weight: 3770 lbs 1710 kg.

Overview

	1985 - 1990 L SeriesCompact Utility tractor
1985 - 1990
L Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L3350F	2WD
L3350DT	4WD

Kubota L3350 Engine
Kubota 1.9L 4-cyl diesel
Engine details ...

Kubota L3350 Transmission
8-speed partially synchronized mechanical shuttle
Transmission details ...

Kubota L3350 Power
Engine	40 hp 29.8 kW
PTO (claimed)	32 hp 23.9 kW
Drawbar (tested)	26.66 hp 19.9 kW
PTO (tested)	32.86 hp 24.5 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	power
Wet disc brakes
Two-post ROPS with optional sunshade.

Capacity
Fuel	15.3 gal 57.9 L
Hydraulic system	11.4 gal 43.1 L

Hydraulics
Type	open center
Capacity	11.4 gal 43.1 L
Pressure	2500 psi 172.4 bar
Valves	0 to 2
Pump flow	9.3 gpm 35.2 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	3420 lbs 1551 kg
Rear lift (at 24"/610mm)	2650 lbs 1202 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540/750

Dimensions & Tires
Wheelbase	72.6 inches 184 cm
Weight	3770 lbs 1710 kg
Front tire	8-16
Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Front Loaders published in 1988, by Kubota
Product Catalog published in 1990, by Kubota
L3350 published in 1986, by Kubota

Engine

Engine Detail — 113.6 ci / 1.9 L Diesel

Manufacturer	Kubota V1902-DA-A
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	113.6 ci 1.9 L
Bore/Stroke	3.3x3.2 inches 84 x 81 mm
Power	40 hp 29.8 kW
Air cleaner	dry with safety element
Rated RPM	2600
Starter volts	12
Oil capacity	7.9 qts 7.5 L
Coolant capacity	7.4 qts 7.0 L

Transmission

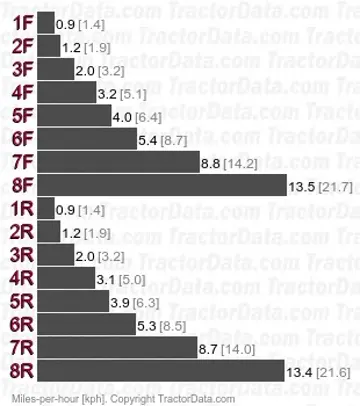

Transmission — 8 forward and reverse partially synchronized mechanical shuttle

Type	partially synchronized mechanical shuttle
Gears	8 forward and reverse
Clutch	dry plate
Oil capacity	45.6 qts 43.2 L

Dimensions

Kubota L3350 Tires
Ag front	8-16
Ag rear	13.6-24
Ag front	7-16
	9.5-16
Ag rear	12.4-24
	14.9-24

Dimensions
Wheelbase	72.6 inches 184 cm
Length	137.2 inches 348 cm
Width	62.2 inches 157 cm
Height (steering wheel)	59.6 inches 151 cm
Shipping weight	3770 lbs 1710 kg
Ground clearance	11.0 inches 27 cm
Front tread	50 inches 127 cm
Rear tread	48 to 68 inches 121 to 172 cm

Tests

Nebraska Tractor Test 1588
Diesel 8-speed 4WD October 30 - November 12, 1985 Link: Nebraska Tractor Test 1588 file
PTO performance
Power at rated engine speed	32.86 hp 24.5 kW
Fuel use	2.0 gal/hour 7.6 l/hour
Power at rated PTO speed	33.29 hp 24.8 kW
Fuel use	1.9 gal/hour 7.2 l/hour
Drawbar performance
Max power	26.66 hp 19.9 kW
Gear 6 used for power test.
Max pull	4,430 lbs 2009 kg
Gear 3 used for pull test.

Attachments

Attachment overview
Front-end loader
Backhoe

Kubota L4540 Backhoe
Backhoe type	Kubota L4540 Backhoe
Bucket width	13 inches 33 cm
	18 inches 45 cm
	24 inches 60 cm
	30 inches 76 cm
Digging depth	125 inches 317 cm
Reach from pivot	167 inches 424 cm
Loading height	98 inches 248 cm
Bucket force	3980 lbs 1805 kg
Dipperstick force	1675 lbs 759 kg

Kubota L4540A Backhoe
Backhoe type	Kubota L4540A Backhoe
Transport height	103.2 inches 262 cm
Bucket width	13 inches 33 cm
	18 inches 45 cm
	24 inches 60 cm
	30 inches 76 cm
	36 inches 91 cm
Digging depth	135.5 inches 344 cm
Reach from pivot	167.4 inches 425 cm
Loading height	98.6 inches 250 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3450 lbs 1564 kg
Dipperstick force	2740 lbs 1242 kg

Kubota L4560 Backhoe
Backhoe type	Kubota L4560 Backhoe
Transport height	105 inches 266 cm
Bucket width	13 inches 33 cm
	18 inches 45 cm
	24 inches 60 cm
	30 inches 76 cm
Digging depth	99 inches 251 cm
Reach from pivot	147 inches 373 cm
Loading height	99.25 inches 252 cm
Bucket Rotation	190°
Swing Arc	180°
Bucket force	4920 lbs 2231 kg
Dipperstick force	2430 lbs 1102 kg

Photos

Kubota L3350 with ROPS.

Kubota L3350 with ROPS and front-end loader.
