Kubota L3250

The Kubota L3250 is a tractor produced by Kubota. It is equipped with a 113.6 ci 1.9 L engine. The rated power output is 40 hp 29.8 kW. Transmission: 8 forward and 7 reverse. Operating weight: 2750 lbs 1247 kg.

Overview

	1989 - 1990 L SeriesCompact Utility tractor
1989 - 1990
L Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L3250F	2WD
L3250DT	4WD

Kubota L3250 Engine
Kubota 1.9L 4-cyl diesel
Fuel tank	7.7 gal 29.1 L
Engine details ...

Kubota L3250 Transmission
8-speed mechanical shuttle
Transmission details ...

Kubota L3250 Power
Engine (gross)	40 hp 29.8 kW
PTO (claimed)	32 hp 23.9 kW

Mechanical
Two- or four-wheel drive
Steering	power
Mechanical wet disc brakes
Two-post ROPS.

Hydraulics
Type	open center
Pump flow	7.8 gpm 29.5 lpm

Tractor hitch
Rear Type	I
Rear lift	1875 lbs 850 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540

Dimensions & Tires
Wheelbase	68.3 inches 173 cm
Weight	2750 lbs 1247 kg
Front tire	6.00-16
Rear tire	13.6-26
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Front Loaders published in 1988, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota*
Product Catalog published in 1990, by Kubota
M4030SU Turf Special & L3250F Turf Special published in 1990, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 113.6 ci / 1.9 L Diesel

Manufacturer	Kubota V1902
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	113.6 ci 1.9 L
Bore/Stroke	3.3x3.2 inches 84 x 81 mm
Power (gross)	40 hp 29.8 kW
Fuel system	direct injection
Rated RPM	2600
Starter volts	12
Coolant capacity	7.4 qts 7.0 L

Transmission

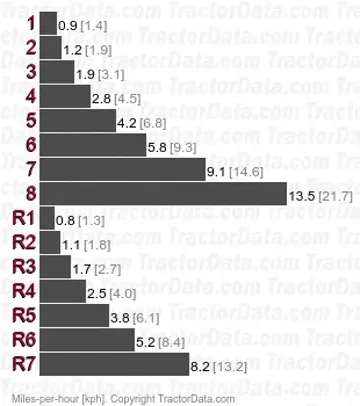

Transmission — 8 forward and 7 reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and 7 reverse

Dimensions

Kubota L3250 Tires
Ag front	6.00-16
Ag rear	13.6-26
Lawn/turf front	29x12.50-15 (Turf Special)
Lawn/turf rear	21.5-16.1 (Turf Special)

Dimensions
Wheelbase	68.3 inches 173 cm
Length	114.2 inches 290 cm
Width	56.1 inches 142 cm
Height	80.7 inches 204 cm
Weight	2750 lbs 1247 kg

Attachments

Attachment overview
Kubota BF550 loader
Kubota LA650A loader
Backhoe

Kubota L4530B Backhoe
Backhoe type	Kubota L4530B Backhoe
Transport height	71.2 inches 180 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	96 inches 243 cm
Reach from pivot	112 inches 284 cm
Loading height	70.8 inches 179 cm
Bucket Rotation	194°
Swing Arc	180°
Bucket force	2890 lbs 1310 kg
Dipperstick force	1645 lbs 746 kg

Kubota L4560 Backhoe
Backhoe type	Kubota L4560 Backhoe
Transport height	105 inches 266 cm
Bucket width	13 inches 33 cm
	18 inches 45 cm
	24 inches 60 cm
	30 inches 76 cm
Digging depth	99 inches 251 cm
Reach from pivot	147 inches 373 cm
Loading height	99.25 inches 252 cm
Bucket Rotation	190°
Swing Arc	180°
Bucket force	4920 lbs 2231 kg
Dipperstick force	2430 lbs 1102 kg

Photos

Kubota L3250 with LA650 front-end loader.

Kubota L3250 with LA650 front-end loader.

Kubota L3250 with LA650 front-end loader.

Kubota L3250 with LA650 front-end loader.
