Kubota GR2120

The Kubota GR2120 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 778 cc 47.5 ci engine. The listed engine power is Diesel (gross): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 970 lbs*Weight with 54 inch mower deck. 439 kg.

Engine Power
Diesel (gross): 17 hp / 12.7 kW
Fuel & Capacities
4.8 gal 18.2 L
Transmission
infinite forward and reverse
Operating Weight
970 lbs*Weight with 54 inch mower deck. 439 kg

Overview

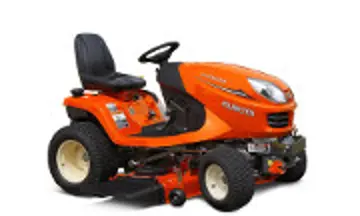

Kubota GR2120 tractor photo
2015 - GR SeriesGarden tractor
2015 -
GR Series
Garden tractor
Production
Manufacturer
Kubota
Garden tractor
Original price was $10,249 in 2022
Kubota GR2120 Engine
17HP Kubota 778cc 3-cyl diesel
Fuel tank
4.8 gal 18.2 L
Engine details ...
Kubota GR2120 Transmission
hydrostatic
Transmission details ...
Mechanical
Four-wheel drive
Power steering
Mechanical drum brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electro-hydraulic wet disc
Dimensions & Tires
Wheelbase
50.4 inches 128 cm
Weight
970 lbs 439 kg
Front tire
16x7.5-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
GR2120 references literature
GR Series published in 2019, by Kubota

Engine

Engine Detail — 778 cc / 47.5 ci Diesel

Manufacturer
Kubota D782
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled horizontal-shaft inline
Displacement
778 cc 47.5 ci
Bore/Stroke
2.638x2.898 inches 67 x 74 mm
Power (gross)
17 hp 12.7 kW
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type
shaft-driven hydrostatic
Gears
infinite forward and reverse
GR2120  shaft-driven hydrostatic speeds

Dimensions

Kubota GR2120 Tires
Lawn/turf front
16x7.5-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
50.4 inches 128 cm
Length
78.3 inches 198 cm
Height (steering wheel)
50.8 inches 129 cm
Weight
970 lbs*Weight with 54 inch mower deck. 439 kg
Ground clearance
4..7 inches 10 cm
Front tread
32.5 inches 82 cm
Rear tread
32.2 inches 81 cm

Attachments

Attachment overview
48" mower deck
54" mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Kubota GR2120 tractor photo

Kubota GR2120 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota GR2120 based on its 17 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota GR2120.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (4.8 gal / 18.2 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota GR2120 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota GR2120.

Converted Equivalents:

Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS

Direct Competitor Comparison

Compare Kubota GR2120 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota GR2120

Engine Power:Diesel (gross): 17 hp / 12.7 kW
★ Baseline Reference
FordMarket Competitor

Ford 1200

Engine Power:15.3
Production Years:1979 - 1982
KubotaMarket Competitor

Kubota A-15

Engine Power:15.3
Production Years:1988 - 1992
International HarvesterMarket Competitor

International Harvester 154 Lo-Boy

Engine Power:15.6
Production Years:1968 - 1974
Massey FergusonMarket Competitor

Massey Ferguson 1205

Engine Power:15.7
Production Years:1997 - 2003
