Kubota G1700

The Kubota G1700 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 656 cc 40.03 ci engine. The listed engine power is Diesel (gross): 15 hp / 11.2 kW. Transmission: infinite forward and reverse. Operating weight: 706 lbs 320 kg.

Engine Power
Diesel (gross): 15 hp / 11.2 kW
Fuel & Capacities
5 gal 18.9 L
Transmission
infinite forward and reverse
Operating Weight
706 lbs 320 kg

Overview

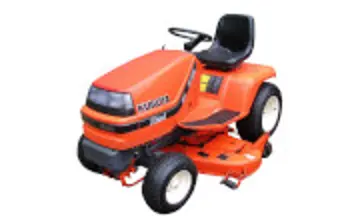

Kubota G1700 tractor photo
1989 - 2000 G SeriesGarden tractor G Series Garden tractor
Production
Manufacturer
Kubota
Garden tractor
Kubota G1700 Engine
11.2KW Kubota 656cc 3-cyl diesel
Fuel tank
5 gal 18.9 L
Engine details ...
Kubota G1700 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Mechanical drum brakes
Open operator station.
Tractor hitch
Rear Type
0 OptOptional
Power Take-off (PTO)
Rear PTO
independent OptOptional
Rear PTO Type
2000
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
50 inches 127 cm
Weight
706 lbs 320 kg
Front tire
16x6.50-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
G1700 references literature
Diesel Garden Tractor G1700H/G1800HS published in 1999, by Kubota

Engine

Engine Detail — 656 cc / 40.03 ci Diesel

Manufacturer
Kubota D662
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled horizontal-shaft inline
Displacement
656 cc 40.03 ci
Bore/Stroke
2.52x2.68 inches 64 x 68 mm
Power (gross)
15 hp 11.2 kW
Rated RPM
3600
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type
shaft-driven hydrostatic
Gears
infinite forward and reverse
G1700  shaft-driven hydrostatic speeds

Dimensions

Kubota G1700 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
50 inches 127 cm
Length
73.4 inches 186 cm
Width
37.8 inches 96 cm
Height (steering wheel)
45.7 inches 116 cm
Weight
706 lbs 320 kg
Front tread
29.1 inches 73 cm
Rear tread
27.4/29.7 inches 69/75 cm

Attachments

Attachment overview
121 cm mid-mount mower deck
137 cm mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

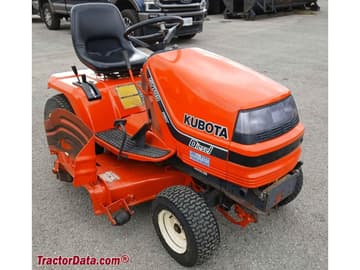

Kubota G1700 garden tractor.

Kubota G1700 garden tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota G1700 based on its 15 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota G1700.

Estimated Continuous Field Runtime: 6.4 hrs

Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota G1700 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota G1700.

Converted Equivalents:

Horsepower (HP)15 hp
Kilowatts (kW)11.2 kW
Metric Horsepower (PS / CV)15.2 PS
