Kubota T1700

The Kubota T1700 is a tractor produced by Kubota Lawn Tractors. The listed engine power is Gasoline (listed): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 564 lbs 255 kg.

Engine Power
Gasoline (listed): 17 hp / 12.7 kW
Fuel & Capacities
2.8 gal 10.6 L
Transmission
infinite forward and reverse
Operating Weight
564 lbs 255 kg

Overview

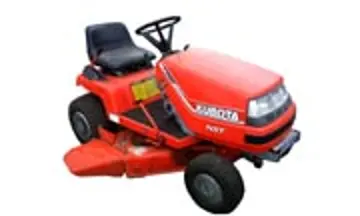

Kubota T1700 tractor photo
1991 - 1996 T SeriesLawn tractor T Series Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Kubota T1700 Engine
17HP Kawasaki 1-cyl gasoline
Fuel tank
2.8 gal 10.6 L
Engine details ...
Kubota T1700 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
46.9 inches 119 cm
Weight
564 lbs 255 kg
Front tire
15x6.00-6
Rear tire
20x10.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — Gasoline

Manufacturer
Kawasaki
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Power
17 hp 12.7 kW
Starter volts
12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
T1700  belt-driven hydrostatic speeds

Dimensions

Kubota T1700 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
20x10.00-8
Dimensions
Wheelbase
46.9 inches 119 cm
Length
68.2 inches 173 cm
Width
41.3 inches 104 cm
Height
56.3 inches 143 cm
Weight
564 lbs 255 kg
Front tread
25.8 inches 65 cm
Rear tread
27.2 inches 69 cm

Attachments

Attachment overview
44" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade

Photos

Kubota T1700X with T2541 snowblower.

Kubota T1700X with T2541 snowblower.

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota T1700 based on its 17 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota T1700.

Estimated Continuous Field Runtime: 3.2 hrs

Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (2.8 gal / 10.6 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota T1700 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota T1700.

Converted Equivalents:

Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
