Kubota T1760

The Kubota T1760 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 437 cc 26.7 ci engine. The listed engine power is Gasoline (listed): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 606 lbs (with 48 mower) 274 kg.

Engine Power
Gasoline (listed): 17 hp / 12.7 kW
Fuel & Capacities
2.9 gal 11.0 L
Transmission
infinite forward and reverse
Operating Weight
606 lbs (with 48 mower) 274 kg

Overview

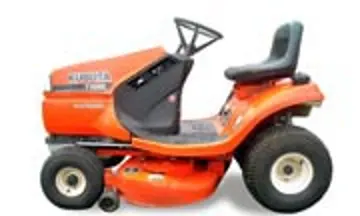

Kubota T1760 tractor photo
1997 - 2001 T SeriesLawn tractor T Series Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Kubota T1760 Engine
17HP Kawasaki 437cc 2-cyl gasoline
Fuel tank
2.9 gal 11.0 L
Engine details ...
Kubota T1760 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Open operator station.
Dimensions & Tires
Wheelbase
47 inches 119 cm
Weight
606 lbs 274 kg
Front tire
15x6.00-6
Rear tire
20x10.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
T1760 references literature
1999 Products published by Kubota
Americans on Kubota published in 2000

Engine

Engine Detail — 437 cc / 26.7 ci Gasoline

Manufacturer
Kawasaki FD501V
Fuel Type
Gasoline
Configuration
2-cylinder, liquid-cooled V-Twin
Displacement
437 cc 26.7 ci
Bore/Stroke
2.64x2.44 inches 67 x 62 mm
Power
17 hp 12.7 kW
Rated RPM
3400
Starter volts
12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
T1760  hydrostatic speeds

Dimensions

Kubota T1760 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
20x10.00-8
Dimensions
Wheelbase
47 inches 119 cm
Length
68 inches 172 cm
Width
56.9 inches (tractor) 144 cm
60.8 inches (with mower) 154 cm
Height
44.1 inches 112 cm
Weight
606 lbs (with 48 mower) 274 kg

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
48" Mower deck
Type
mid-mount Kubota RCK48LT
Cutting width
48 inches 121 cm
Cut height
1 to 4 inch 2 to 10 cm

Photos

Kubota T1760 lawn tractor.

Kubota T1760 lawn tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota T1760 based on its 17 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota T1760.

Estimated Continuous Field Runtime: 3.3 hrs

Approximately 3.3 hours of continuous field operation at ~75% rated power on a full tank (2.9 gal / 11 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota T1760 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota T1760.

Converted Equivalents:

Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS

Direct Competitor Comparison

Compare Kubota T1760 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota T1760

Engine Power:Gasoline (listed): 17 hp / 12.7 kW
★ Baseline Reference
FordMarket Competitor

Ford 1200

Engine Power:15.3
Production Years:1979 - 1982
KubotaMarket Competitor

Kubota A-15

Engine Power:15.3
Production Years:1988 - 1992
International HarvesterMarket Competitor

International Harvester 154 Lo-Boy

Engine Power:15.6
Production Years:1968 - 1974
Massey FergusonMarket Competitor

Massey Ferguson 1205

Engine Power:15.7
Production Years:1997 - 2003
