Kubota T1770

The Kubota T1770 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 560 cc 34.2 ci engine. The listed engine power is Gasoline (listed): 17 hp / 12.7 kW; Gasoline (listed): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 562 lbs 254 kg.

Overview

	2002 - 2007 T SeriesLawn tractor T Series Lawn tractor

Production
Manufacturer	Kubota
Lawn tractor

Kubota T1770 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual, sector and pinion
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	47.5 inches 120 cm
Weight	562 lbs 254 kg
Front tire	15x6.00-6
Rear tire	20x10.00-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine options
17HP Kawasaki 493cc 2-cyl gasoline
17HP Kohler 560cc 2-cyl gasoline

Engine Detail — 493 cc / 30.1 ci Gasoline

Manufacturer	Kawasaki FH500V
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
The Kawasaki engine was used on the T1770 in 2002 and 2003.
Displacement	493 cc 30.1 ci
Bore/Stroke	2.68x2.68 inches 68 x 68 mm
Power	17 hp 12.7 kW
Starter volts	12

Engine Detail — 560 cc / 34.2 ci Gasoline

Manufacturer	Kohler CV17
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
The Kohler engine was used on the T1770 beginning in 2004.
Displacement	560 cc 34.2 ci
Bore/Stroke	2.87x2.64 inches 73 x 67 mm
Power	17 hp 12.7 kW

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota T1770 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x10.00-8

Dimensions
Wheelbase	47.5 inches 120 cm
Length	68.8 inches 174 cm
Width	35.5 inches 90 cm
Height	43.6 inches 110 cm
Weight	562 lbs 254 kg

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Kubota RCK44LTB
Cutting width	44 inches 111 cm

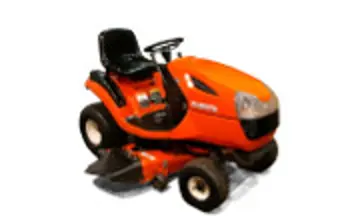

Photos

Kubota T1770
