Kubota Z781T
The Kubota Z781T is a tractor produced by Kubota Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Gasoline (gross): 29.5 hp / 22.0 kW. Transmission: Parker HTG14. Operating weight: 1285 lbs 582 kg.
Engine Power
Gasoline (gross): 29.5 hp / 22.0 kW
Fuel & Capacities
11.6 gal
43.9 L
Transmission
Parker HTG14
Operating Weight
1285 lbs
582 kg
Overview
 | 2018 -
Z700 SeriesZero-turn mower |
|---|---|
2018 - | |
Z700 Series | |
Zero-turn mower | |
2018 - | |
|---|---|
Z700 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Original price was $11,299 in 2021 | |
Kubota Z781T Engine | |
|---|---|
29.5HP Kawasaki 852cc 2-cyl gasoline | |
Fuel tank | 11.6 gal
43.9 L |
Engine details ...  | |
Kubota Z781T Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Drum brakes | |
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.9 inches
129 cm |
Weight | 1285 lbs
582 kg |
Front tire | 13x6.5-6 |
Rear tire | 24x12-14 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
Z700 Series published in 2018, by Kubota |
Engine
| 2018 -
Z700 SeriesZero-turn mower |
|---|---|
2018 - | |
Z700 Series | |
Zero-turn mower | |
2018 - | |
|---|---|
Z700 Series | |
Zero-turn mower |

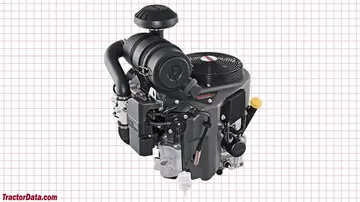

Engine Detail — 852 cc / 52 ci Gasoline
Manufacturer | Kawasaki FX850V-EFI |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 852 cc
52 ci |
Bore/Stroke | 3.33x2.99 inches
85 x 76 mm |
Power (gross) | 29.5 hp
22.0 kW |
Fuel system | electronic fuel injection |
Starter | electric |
Starter volts | 12 |
Kubota Z781T Engine | |
|---|---|
 |
Transmission
| 2018 -
Z700 SeriesZero-turn mower |
|---|---|
2018 - | |
Z700 Series | |
Zero-turn mower | |
2018 - | |
|---|---|
Z700 Series | |
Zero-turn mower |

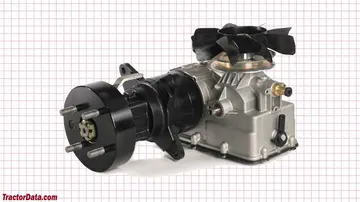

Transmission — Parker HTG14
Transmission | Parker HTG14 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Kubota Z781T Transmission | |
|---|---|
 |
Dimensions
| 2018 -
Z700 SeriesZero-turn mower |
|---|---|
2018 - | |
Z700 Series | |
Zero-turn mower | |
2018 - | |
|---|---|
Z700 Series | |
Zero-turn mower |
Kubota Z781T Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 24x12-14 |
Dimensions | |
|---|---|
Wheelbase | 50.9 inches
129 cm |
Length | 83.9 inches
213 cm |
Width | 54.7 inches
138 cm |
Height (ROPS) | 70.1 inches
178 cm |
Height (Folded ROPS) | 48.6 inches
123 cm |
Weight | 1285 lbs
582 kg |
Front tread | 37.6 inches
95 cm |
Rear tread | 42.7 inches
108 cm |
Attachments
| 2018 -
Z700 SeriesZero-turn mower |
|---|---|
2018 - | |
Z700 Series | |
Zero-turn mower | |
2018 - | |
|---|---|
Z700 Series | |
Zero-turn mower |
60" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK60P-781Z |
3-blade | |
Cutting width | 60 inches
152 cm |
Overall width | 73.8 inches
187 cm |
Cut height | 1.0 to 5.5 inch
2 to 13 cm |
Photos

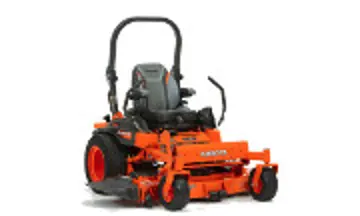

Kubota Z781T tractor photo
Kubota Lawn Tractors Kubota Z781T Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z781T.
Converted Equivalents:
Horsepower (HP)29.5 hp
Kilowatts (kW)22 kW
Metric Horsepower (PS / CV)29.9 PS
