Kubota F2400

The Kubota F2400 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1122 cc 68.5 ci engine. The listed engine power is Diesel (gross): 24 hp / 17.9 kW. Transmission: infinite forward and reverse. Drive type: 4x4 4WD. Operating weight: 1410 lbs 639 kg.

Engine Power
Diesel (gross): 24 hp / 17.9 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
9 gal 34.1 L
Transmission
infinite forward and reverse
Operating Weight
1410 lbs 639 kg

Overview

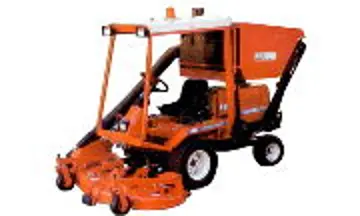

Kubota Lawn Tractors F2400 tractor photo
1988 - 1997 F SeriesFront-mount mower F Series Front-mount mower
Production
Manufacturer
Kubota
Front-mount mower
Variants
F2400
conventional
FZ2400
zero-turn radius
Kubota F2400 Engine
24HP Kubota 1122cc 3-cyl diesel
Fuel tank
9 gal 34.1 L
Engine details ...
Kubota F2400 Transmission
hydrostatic
Transmission details ...
Mechanical
Drive
4x4 4WD
Power steering
Drum brakes
Two-post ROPS. Four-post ROPS optional.
Hydraulics
Pump flow
3.0 gpm 11.4 lpm
Power Take-off (PTO)
Front PTO
independent
Dimensions & Tires
Wheelbase
48.6 inches 123 cm
Weight
1410 lbs 639 kg
Front tire
23x10.50-12
Rear tire
16x6.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
F2400 references literature
Diesel Front Mower F2400 4WD/F2100 4WD/F2100E 2WD published in 1992, by Kubota
Product Catalog published in 1990, by Kubota

Engine

Kubota F2400 tractor photo
1988 - 1997 F SeriesFront-mount mower
1988 - 1997
F Series
Front-mount mower

Engine Detail — 1122 cc / 68.5 ci Diesel

Manufacturer
Kubota D1105-F
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
1122 cc 68.5 ci
Bore/Stroke
3.07x3.09 inches 78 x 78 mm
Power (gross)
24 hp 17.9 kW
Air cleaner
dry
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Kubota F2400 tractor photo
1988 - 1997 F SeriesFront-mount mower
1988 - 1997
F Series
Front-mount mower

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
F2400  hydrostatic speeds

Dimensions

Kubota F2400 tractor photo
1988 - 1997 F SeriesFront-mount mower
1988 - 1997
F Series
Front-mount mower
Kubota F2400 Tires
Lawn/turf front
23x10.50-12
Lawn/turf rear
16x6.50-8
Dimensions
Wheelbase
48.6 inches 123 cm
Length
86.2 inches 218 cm
Width
44.9 inches 114 cm
Height (steering wheel)
53.9 inches 136 cm
Shipping weight
1410 lbs 639 kg
Ground clearance
6.9 inches 17 cm
Front tread
34.4 inches 87 cm
Rear tread
34.3 inches 87 cm

Attachments

Kubota F2400 tractor photo
1988 - 1997 F SeriesFront-mount mower
1988 - 1997
F Series
Front-mount mower
Attachment overview
60" front-mount mower deck
72" front-mount mower deck
Snowblower
Blade

Photos

Kubota Lawn Tractors F2400 tractor authentic field photo (1)

High-resolution operational photo of Kubota Lawn Tractors F2400 tractor in agricultural operations

Kubota F2400 tractor photo

Kubota F2400 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota F2400 based on its 24 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota F2400.

Estimated Continuous Field Runtime: 7.2 hrs

Approximately 7.2 hours of continuous field operation at ~75% rated power on a full tank (9 gal / 34.1 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota F2400 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota F2400.

Converted Equivalents:

Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
