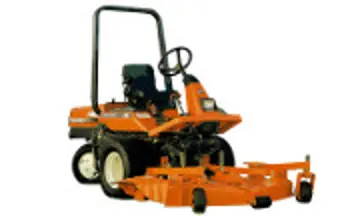

Kubota FZ2400
The Kubota FZ2400 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1122 cc 68.5 ci engine. The listed engine power is Diesel (gross): 24 hp / 17.9 kW. Transmission: infinite forward and reverse. Drive type: 4x4 4WD. Operating weight: 1587 lbs*Weight of machine without mower deck. 719 kg.
Overview
![]() | 1992 - 1997
F SeriesFront-mount mower
F Series
Front-mount mower |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Front-mount mower | |
The FZ2400 used a rear axle allowing for zero turning radius. | |
Variants | |
|---|---|
F2400 | conventional |
FZ2400 | zero-turn radius |
Kubota FZ2400 Engine | |
|---|---|
24HP Kubota 1122cc 3-cyl diesel | |
Fuel tank | 8.2 gal
31.0 L |
Engine details ... | |
Kubota FZ2400 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Power steering | |
Drum brakes | |
Two-post ROPS | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | dry disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 51.2 inches
130 cm |
Weight | 1587 lbs
719 kg |
Front tire | 23x10.50-12 |
Rear tire | 20x8.00-10 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
4WD Front Mower FZ2100/FZ2400 published in 1992, by Kubota |
Engine
Engine Detail — 1122 cc / 68.5 ci Diesel
Manufacturer | Kubota D1105-FZ |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 1122 cc
68.5 ci |
Bore/Stroke | 3.07x3.09 inches
78 x 78 mm |
Power (gross) | 24 hp
17.9 kW |
Air cleaner | dry |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
Kubota FZ2400 Tires | |
|---|---|
Lawn/turf front | 23x10.50-12 |
Lawn/turf rear | 20x8.00-10 |
Dimensions | |
|---|---|
Wheelbase | 51.2 inches
130 cm |
Length | 89 inches
226 cm |
Width | 44.9 inches
114 cm |
Height (steering wheel) | 57.9 inches
147 cm |
Height (ROPS) | 77.6 inches
197 cm |
Weight | 1587 lbs*Weight of machine without mower deck.
719 kg |
Ground clearance | 6.3 inches
16 cm |
Front tread | 34.4 inches
87 cm |
Rear tread | 15.4 inches
39 cm |
Attachments
Attachment overview | |
|---|---|
54" front-mount mower deck | |
60" front-mount mower deck | |
72" front-mount mower deck | |
Snowblower | |
Blade |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota FZ2400 based on its 24 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota FZ2400.
Estimated Continuous Field Runtime: 6.6 hrs
Approximately 6.6 hours of continuous field operation at ~75% rated power on a full tank (8.2 gal / 31 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota FZ2400 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota FZ2400.
Converted Equivalents:
