Lamborghini Champion 120
The Lamborghini Champion 120 is a tractor produced by Lamborghini. It is equipped with a 366.1 ci 6.0 L engine. The listed engine power is Diesel (listed): 120 hp / 89.5 kW. Transmission: 27 forward and reverse. Operating weight: 13448 lbs 6100 kg.
Engine Power
Diesel (listed): 120 hp / 89.5 kW
Fuel & Capacities
60.8 gal
230.1 L
Transmission
27 forward and reverse
Operating Weight
13448 lbs
6100 kg
Overview
 | 1998 - 2004
Champion SeriesRow-Crop tractor
Champion Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Lamborghini |
Row-Crop tractor | |
Lamborghini Champion 120 Engine | |
|---|---|
SDF 6.0L 6-cyl diesel | |
Fuel tank | 60.8 gal
230.1 L |
100.4 galOptOptional
380.0 L | |
Engine details ...  | |
Lamborghini Champion 120 Power | |
|---|---|
Engine | 120 hp
89.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
load-sensing OptOptional | |
Valves | 8 OptOptional |
Pump flow | 19.3 gpm (open)
73.1 lpm |
27.2 gpm (load-sensing)
103.0 lpm | |
Tractor hitch | |
|---|---|
Rear lift | 15432 lbs
6999 kg |
18960 lbs*With optional lift cylinders.
8600 kg | |
Front lift | 8818 lbsOptOptional
3999 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 |
540E/1000 | |
Front PTO | independent OptOptional |
Clutch | electro-hydraulic |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 108.3 inches
275 cm |
Weight | 13448 lbs
6100 kg |
Front tire | 420/70R28 |
Rear tire | 520/70R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
References | |
|---|---|
 | |
Champion 120-135-150 published in 1999, by Lamborghini |
Engine
Engine Detail — 366.1 ci / 6.0 L Diesel
Manufacturer | SDF 1000.6 WT 3V |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 366.1 ci
6.0 L |
Bore/Stroke | 4.1338x4.5472 inches
105 x 115 mm |
Power | 120 hp
89.5 kW |
Rated RPM | 2350 |
Torque | 386.5 lb-ft
524.1 Nm |
Torque RPM | 1450 |
Starter type | electric |
Transmission
Transmission options | |
|---|---|
18-speed 9-speed power shift | |
27-speed creeper |

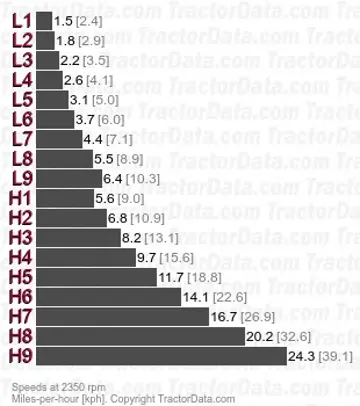

Transmission — 18 forward and reverse 9-speed power shift
Type | 9-speed power shift |
Gears | 18 forward and reverse |
Clutch | hydraulic wet disc |
Nine power shift gears in two ranges with power shuttle. | |
With 520/70R38 rear tires. Rear speeds are aboutg 9% faster than forward. | |
 | |
Transmission | |
Type | creeper |
Gears | 27 forward and reverse |
 | |
Dimensions
Lamborghini Champion 120 Tires | |
|---|---|
Standard tires (ag) | Front: 420/70R28. Rear: 520/70R34 |
Optional tires (ag) | Front: 420/70R30. Rear: 520/70R38 |
Front: 540/65R26. Rear: 600/65R34 | |
Front: 420/70R30. Rear: 480/70R38 | |
Front: 540/65R26. Rear: 540/65R38 | |
Dimensions | |
|---|---|
Wheelbase | 108.3 inches
275 cm |
Length | 183.9 inches*Length with three-point linkage
467 cm |
Width | 96.5 inches*Minimum width
245 cm |
Height (hood) | 61.4 inches
155 cm |
Height (cab) | 113.4 inches
288 cm |
Weight | 13448 lbs
6100 kg |
Ground clearance | 20.5 inches
52 cm |
Front tread | 71.7 to 100.8 inches
182 to 256 cm |
Rear tread | 76 to 92.5 inches
193 to 234 cm |
Photos
Lamborghini Champion 120 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Lamborghini Champion 120 based on its 120 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini Champion 120.
Estimated Continuous Field Runtime: 9.7 hrs
Approximately 9.7 hours of continuous field operation at ~75% rated power on a full tank (60.8 gal / 230.2 L).
Estimated 75% Load Fuel Burn~6.2 gal/hr (23.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lamborghini Champion 120 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lamborghini Champion 120.
Converted Equivalents:
Horsepower (HP)120 hp
Kilowatts (kW)89.5 kW
Metric Horsepower (PS / CV)121.7 PS
