Lamborghini 135 Formula

The Lamborghini 135 Formula is a tractor produced by Lamborghini. It is equipped with a 366.1 ci 6.0 L engine. The listed engine power is Diesel (listed): 132 hp / 98.4 kW. Transmission: Multispeed. Operating weight: 10803 lbs 4900 kg.

Engine Power

Diesel (listed): 132 hp / 98.4 kW

Fuel & Capacities

60.8 gal 230.1 L

Transmission

Multispeed

Operating Weight

10803 lbs 4900 kg

Overview

	1991 - 2000 Formula SeriesRow-Crop tractor Formula Series Row-Crop tractor

Production
Manufacturer	Lamborghini
Row-Crop tractor

Lamborghini 135 Formula Engine
SAME 6.0L 6-cyl diesel
Fuel tank	60.8 gal 230.1 L
Engine details ...

Lamborghini 135 Formula Power
Engine	132 hp 98.4 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic
Cab standard with available air-conditioning.

Hydraulics
Pump flow	15.2 gpm 57.5 lpm

Tractor hitch
Rear lift	13,671 lbs 6201 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E/1000/1000E
Front PTO	independent OptOptional
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	108.3 inches 275 cm
Weight	10803 lbs 4900 kg
Front tire	14.9R30
Rear tire	18.4R38
Full dimensions and tires ...

References

Formula 115-135 published in 1997, by Lamborghini*
*Publication contains known errors.

Engine

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer	SAME 100.6WT
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	366.1 ci 6.0 L
Bore/Stroke	4.13x inches 105 x 116 mm
Power	132 hp 98.4 kW
Rated RPM	2500
Torque	362.9 lb-ft 492.1 Nm
Torque RPM	1450

Transmission

Transmission options
54-speed three-speed power shift
72-speed creeper

Transmission — Multispeed

Transmission	Multispeed
Type	three-speed power shift
Gears	54 forward and reverse
Clutch	electro-hydraulic wet disc
Six gears (1-6) in three ranges (L/M/H) with three-speed power shift.
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively.

Transmission — 72 forward and reverse creeper

Type	creeper
Gears	72 forward and reverse
Creeper option adds a fourth ranges to the standard transmission.
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively.

Dimensions

Lamborghini 135 Formula Tires
Standard tires (ag)	Front: 14.9R30. Rear: 18.4R38
Optional tires (ag)	Front: 14.9R28. Rear: 16.9R38
	Front: 480/70R28. Rear: 520/70R38
	Front: 16.9R30. Rear: 20.8R38

Dimensions
Wheelbase	108.3 inches 275 cm
Length	170.1 inches 432 cm
	180.7 inches (with hitch) 458 cm
Width	87.4 inches 221 cm
Height (hood)	73.8 inches 187 cm
Height (cab)	110.4 inches 280 cm
Weight	10803 lbs 4900 kg
Ground clearance	17.7 inches 44 cm
Front tread	70.9 to 81.8 inches 180 to 207 cm

Photos

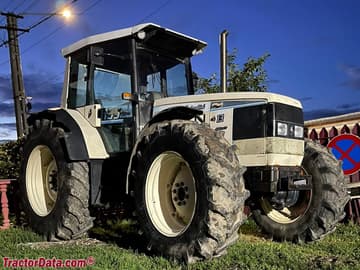

Lamborghini 135 Formula

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini 135 Formula based on its 132 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini 135 Formula.

Estimated Continuous Field Runtime: 8.9 hrs

Approximately 8.9 hours of continuous field operation at ~75% rated power on a full tank (60.8 gal / 230.2 L).

Estimated 75% Load Fuel Burn~6.9 gal/hr (26 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
