Lamborghini R8.270

The Lamborghini R8.270 is a tractor produced by Lamborghini. It is equipped with a 436.1 ci 7.1 L engine. The rated power output is 266 hp 198.4 kW. Transmission: 40 forward and reverse. Operating weight: 19951 lbs 9049 kg.

Overview

	2006 - 2012 R8 SeriesRow-Crop tractor
2006 - 2012
R8 Series
Row-Crop tractor

Note: the Lamborghini model R8.270 is the same as the SAME Diamond 270. The following data is from the Diamond 270 listing.

Production
Manufacturer	Lamborghini (a part of SAME)
Row-Crop tractor

Lamborghini R8.270 Engine
Deutz 7.1L 6-cyl diesel
Fuel tank	145.3 gal 550.0 L
Engine details ...

Lamborghini R8.270 Transmission
40-speed four-speed power shift
Transmission details ...

Lamborghini R8.270 Power
Engine (gross)	266 hp 198.4 kW
Engine (max)	271 hp 202.1 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	pneumatic
	hydraulic
Cab standard with air-conditioning.

Hydraulics
Type	load sensing
Valves	4
Pump flow	31.7 gpm 120.0 lpm

Tractor hitch
Rear lift	23149 lbs 10500 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540E/1000
Engine RPM	540E@1630
Front PTO	independent
Clutch	electro-hydraulic wet disc
Front PTO Type	1000

Dimensions & Tires
Wheelbase	121.6 inches 308 cm
Weight	19951 lbs 9049 kg
Front tire	600/65R38
Rear tire	710/70R42
Full dimensions and tires ...

References
R8 230-270 published in 200, by Lamborghini

Engine

Note: the Lamborghini model R8.270 is the same as the SAME Diamond 270. The following data is from the Diamond 270 listing.

Engine Detail — 436.1 ci / 7.1 L Diesel

Manufacturer	Deutz TCD2013
Configuration	turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	436.1 ci 7.1 L
Bore/Stroke	4.25x5.12 inches 108 x 130 mm
Rated Power (gross)	266 hp 198.4 kW
Maximum Power (gross)	271 hp 202.1 kW
Air cleaner	dry
Rated RPM	2350
Torque	775.9 lb-ft 1052.1 Nm
Torque RPM	1600
Starter	electric
Starter volts	12

Transmission

Note: the Lamborghini model R8.270 is the same as the SAME Diamond 270. The following data is from the Diamond 270 listing.

Transmission — 40 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	40 forward and reverse
Clutch	hydraulic wet disc

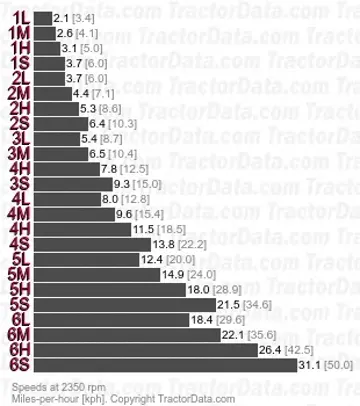

Four power shift gears four creeper ranges and six field ranges with power shuttle.
With 710/70R42 rear tires.

Dimensions

Note: the Lamborghini model R8.270 is the same as the SAME Diamond 270. The following data is from the Diamond 270 listing.

Lamborghini R8.270 Tires
Ag front	600/65R38
Ag rear	710/70R42

Dimensions
Wheelbase	121.6 inches 308 cm
Length	196.9 inches 500 cm
Width	108.3 inches 275 cm
Height (cab)	128.2 inches 325 cm
Weight	19951 lbs 9049 kg
Ground clearance	23.6 inches 59 cm
Front tread	70.9 to 78.7 inches 180 to 199 cm
Rear tread	70.9 to 78.7 inches 180 to 199 cm

Photos

Lamborghini R8.270 tractor photo
