Lamborghini Victory 260
The Lamborghini Victory 260 is a tractor produced by Lamborghini. It is equipped with a 436.1 ci 7.1 L engine. The rated power output is 260 hp 193.9 kW. Transmission: ZF T 7300. Operating weight: 18629 lbs 8450 kg.
Engine Power
260 hp
193.9 kW
Fuel & Capacities
145.3 gal
550.0 L
Transmission
ZF T 7300
Operating Weight
18629 lbs
8450 kg
Lamborghini Victory 260 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1999 - 2001
Victory SeriesRow-Crop tractor |
|---|---|
1999 - 2001 | |
Victory Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Lamborghini |
Row-Crop tractor | |
Lamborghini Victory 260 Engine | |
|---|---|
SAME 7.1L 6-cyl diesel | |
Fuel tank | 145.3 gal
550.0 L |
Engine details ...  | |
Lamborghini Victory 260 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
Lamborghini Victory 260 Power | |
|---|---|
Engine | 260 hp
193.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | closed center |
Pump flow | 31.7 gpm
120.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift | 23149 lbs
10500 kg |
Front Hitch | II OptOptional |
Front lift | 11244 lbs
5100 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 1000 (1.75) |
Front PTO | independent OptOptional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 121.5 inches
308 cm |
Weight | 18629 lbs
8450 kg |
Front tire | 600/70R30 |
Rear tire | 710/70R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Diamond 230 - 260 published in 1998, by SAME |
Engine
Engine Detail — 436.1 ci / 7.1 L Diesel
Manufacturer | SAME BF6M 1013 FC |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled inline |
Displacement | 436.1 ci
7.1 L |
Bore/Stroke | 4.25x5.12 inches
108 x 130 mm |
Power | 260 hp
193.9 kW |
Rated RPM | 2350 |
Torque | 745 lb-ft
1010.2 Nm |
Torque RPM | 1350 |
Lamborghini Victory 260 Engine | |
|---|---|
 |

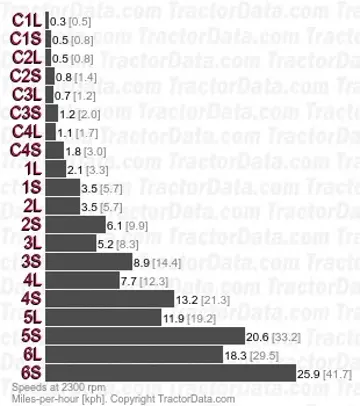

Transmission
Transmission — ZF T 7300
Transmission | ZF T 7300 |
Type | four-speed power shift |
Gears | 40 forward and reverse |
Clutch | hydraulic wet disc |
Six gear, plus four in the creeper range, with four-speed power shift per gear. Power shuttle. | |
 | |
Dimensions
Lamborghini Victory 260 Tires | |
|---|---|
Ag front | 600/70R30 |
Ag rear | 710/70R38 |
Dimensions | |
|---|---|
Wheelbase | 121.5 inches
308 cm |
Length | 171.7 inches
436 cm |
202 inches*With hitch
513 cm | |
Width | 98 inches*Minimum width.
248 cm |
Height (cab) | 127 inches
322 cm |
Shipping weight | 18629 lbs
8450 kg |
Ground clearance | 23.6 inches
59 cm |
Front tread | 70.9 to 78.7 inches
180 to 199 cm |
Rear tread | 70.9 to 78.7 inches
180 to 199 cm |
